INTEL MOTHERBOARD

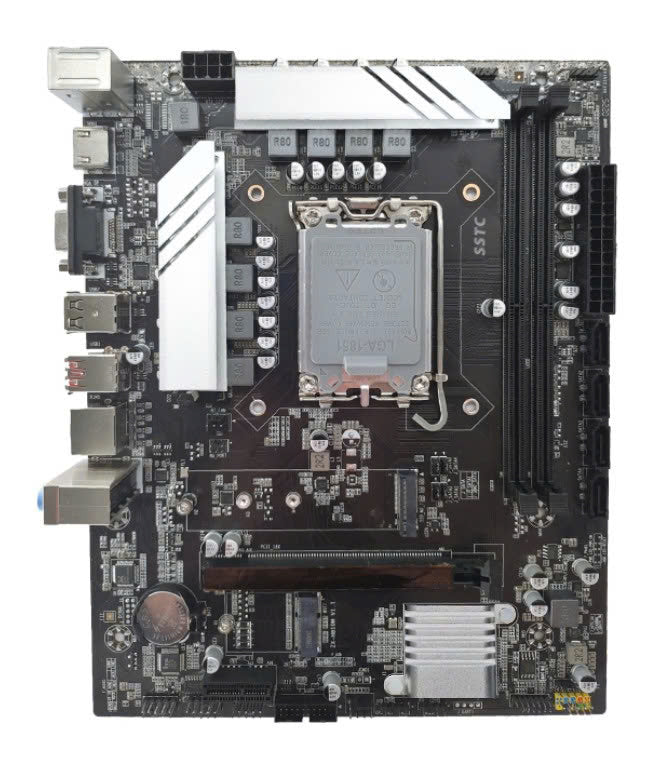

SSTC H810M-HV
SSTC H810M-HV
-
Specification
-
Download
-
Support
| Model | H810M-HV |
| SKU | H810M-HV |
| Mainboard Dimensions | 240mm x 190mm |
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra 200 Processors |
| Chipset | Intel® H810 |
| Memory | 2 x DDR5 DIMM sockets supporting 4800~6400+MHz frequency (synchronous overclocking) up to 64GB. |
| Display Output | -1 x HDMI® port -1 x VGA Port ** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| Expansion Slots | -1*PCIE-16X (support 5.0x16) -1*PCIE-1X |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports -1 x M.2 (supports PCIE 4.0 x4/SATA 600), -4 x SATA 3.0 |
| Network |
-1 x Realtek 8111H Gigabit Ethernet, -1 x M.2 Wi-Fi (PCIE compatible) |
| USB | Rear USB (Total 8 ports) -4 x USB 2.0 -2 x USB 3.2 -2 x USB 3.0 Front USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek ALC897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Features - Audio Shielding - Dedicated audio PCB layers |

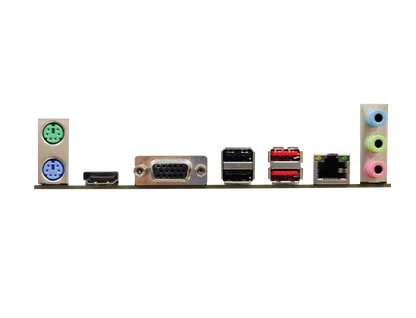

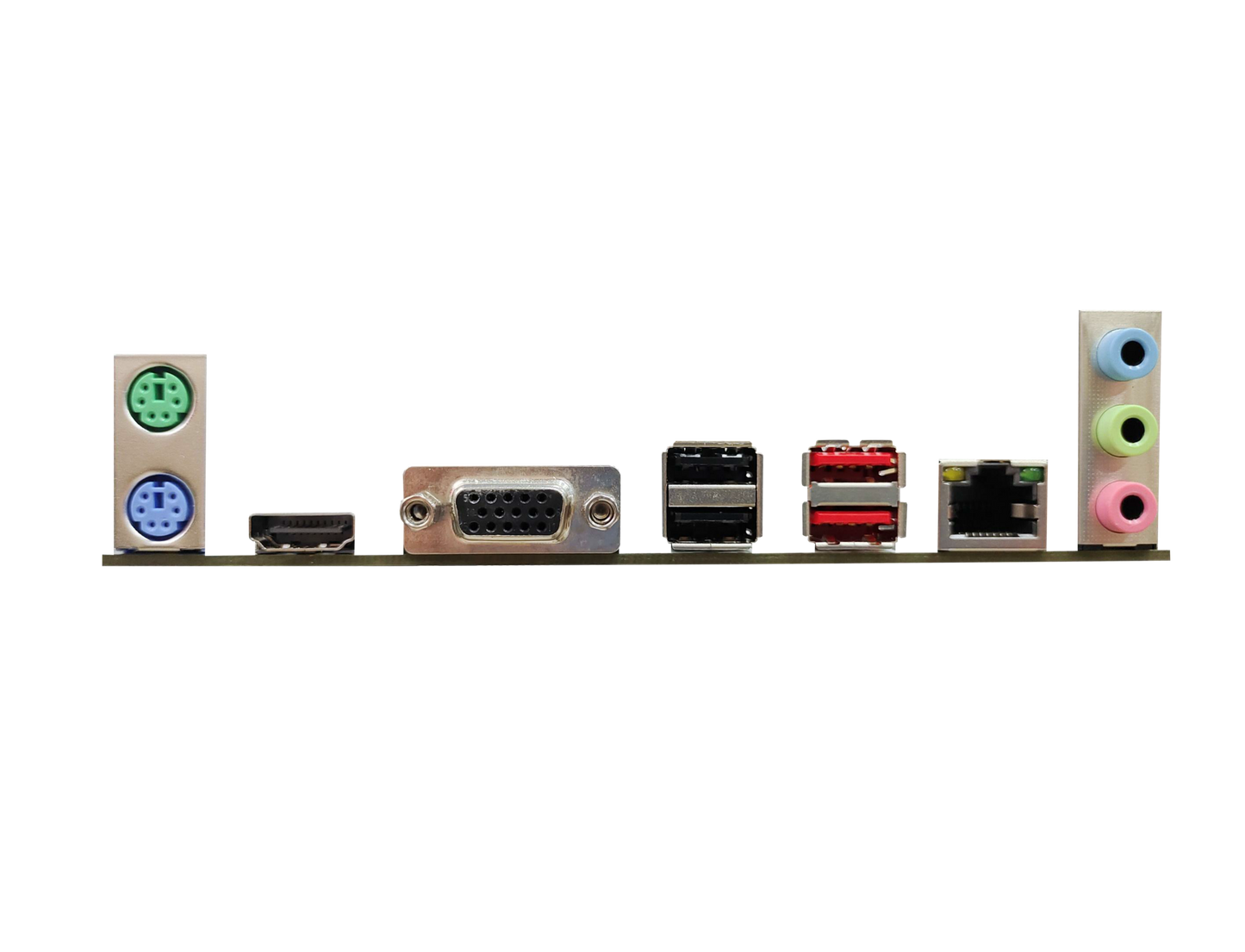

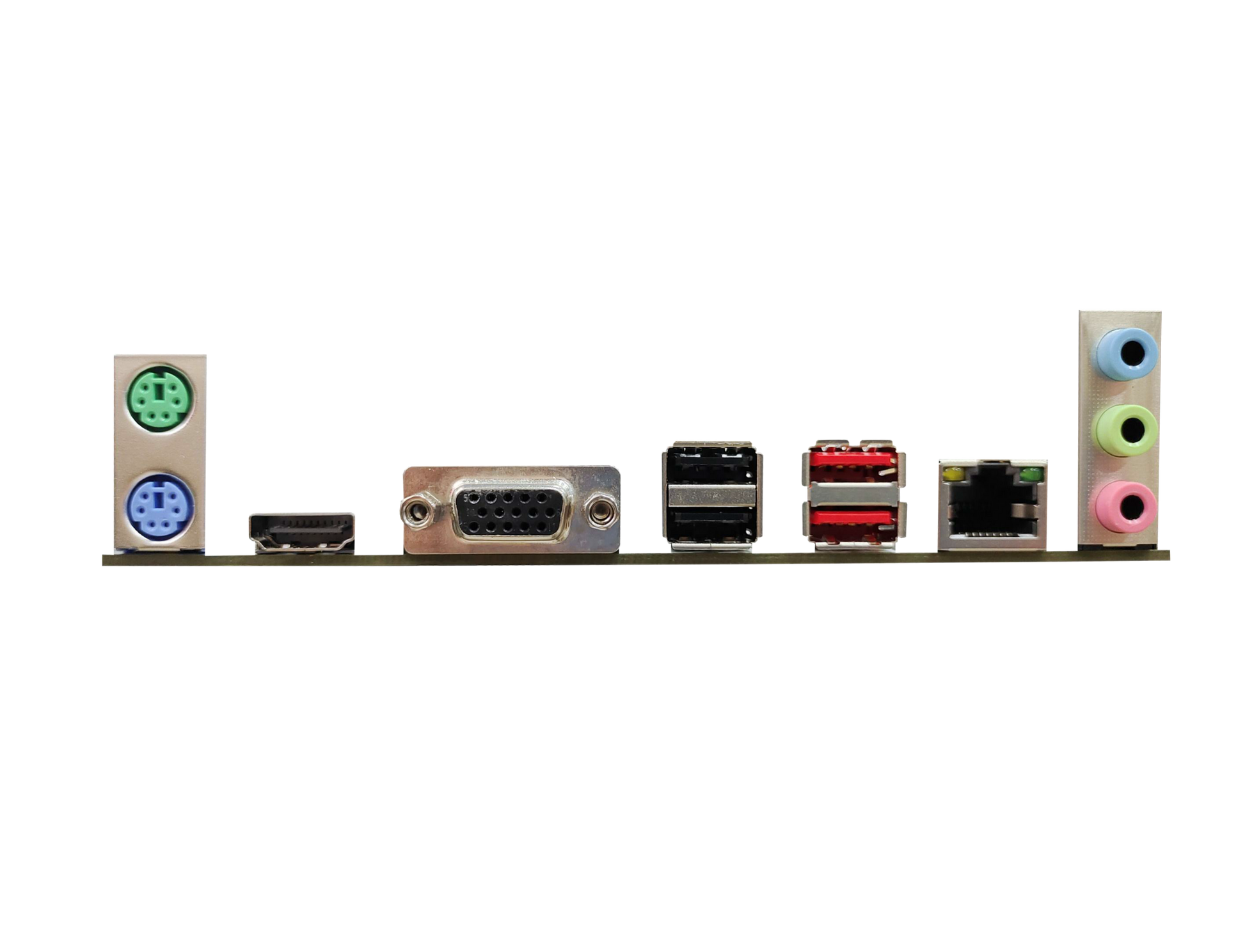

| Back Panel I/O Ports |
2 x USB 3.2 ports (Type-A) 4 x USB 2.0 ports (Type-A) 2 x USB 3.0 ports (Type-A) 1 x HDMI® Port 1 x VGA Port 1 x Realtek Ethernet port 3 x Audio In/Output 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: -1 x 4-pin CPU Fan header -1 x 4-pin SYS Fan header Power related: -1 x 24 pin Main Power connector -1 x 8 pin +12V Power connector -1 x AUTO_ON jumper Storage related: -1 x M.2 slot -4 x SATA 6Gb/s ports USB: -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports -1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 4 x RGB LED strip headers 1 x Clear CMOS header 1 x TPM2.0 header 1 x COM header 1 x Front Audio header 1 x Speaker header 1 x 10-1 pin System Panel header 4 x J-SATA jumper |
