INTEL MOTHERBOARD

SSTC H510M HDV

SSTC H510M HDV

View full details



Model H510M HDV
SKU H510M-HDV-2M.2
CPU

LGA1200 package:
-11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
-10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
-L3 cache varies with CPU
Chipset Intel® H470 / H510 Chipset
Memory -11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
-10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
-10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
-Dual channel memory architecture
-Support for ECC Un-buffered DIMM memory modules (operate in non-ECC mode)
-Support for non-ECC Un-buffered DIMM memory modules
-Support for Extreme Memory Profile (XMP) memory modules
Display Output 1 x D-Sub port
1 x HDMI® port
1 x DisplayPort
Expansion Slots 1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x1 slot
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
1 x M.2 slot (Key M), type 2242/2260/2280 PCIe 3.0 (3 x 4)
4 x SATA 6Gb/s ports
Network 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 4 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 header supports additional 2 USB 3.2 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek ALC897
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

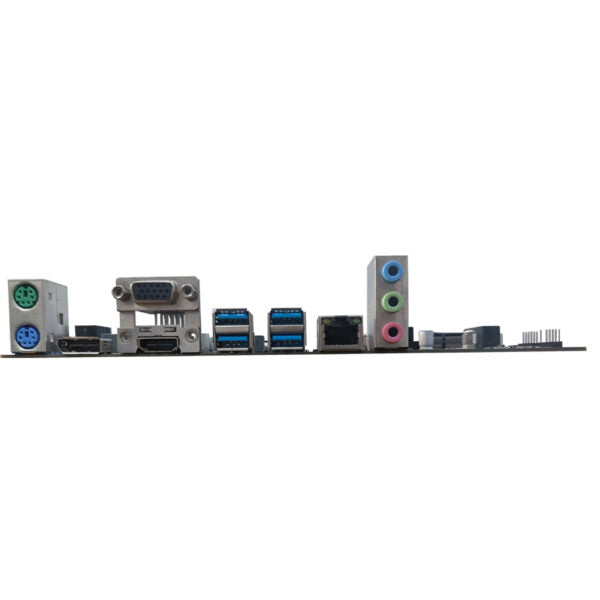

Back Panel
I/O Ports		 4 x USB 3.2 Gen 1 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x DisplayPort
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
2 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related:
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB:
1 x USB 3.2 header supports additional 2 USB 3.2 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous:
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x Speaker header
1 x Clear CMOS header
1 x 10-1 pin System Panel header
