Laptop RAM

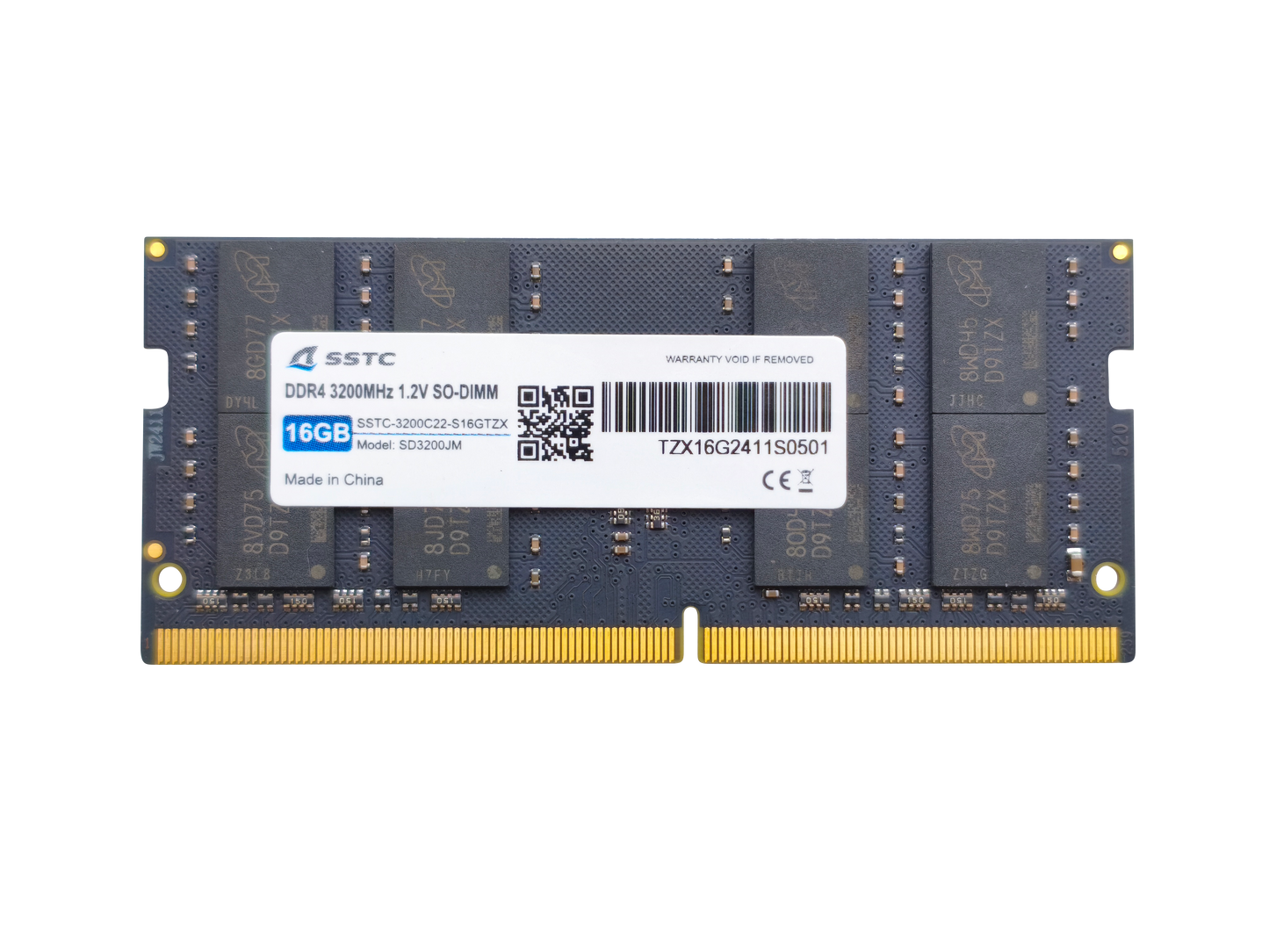

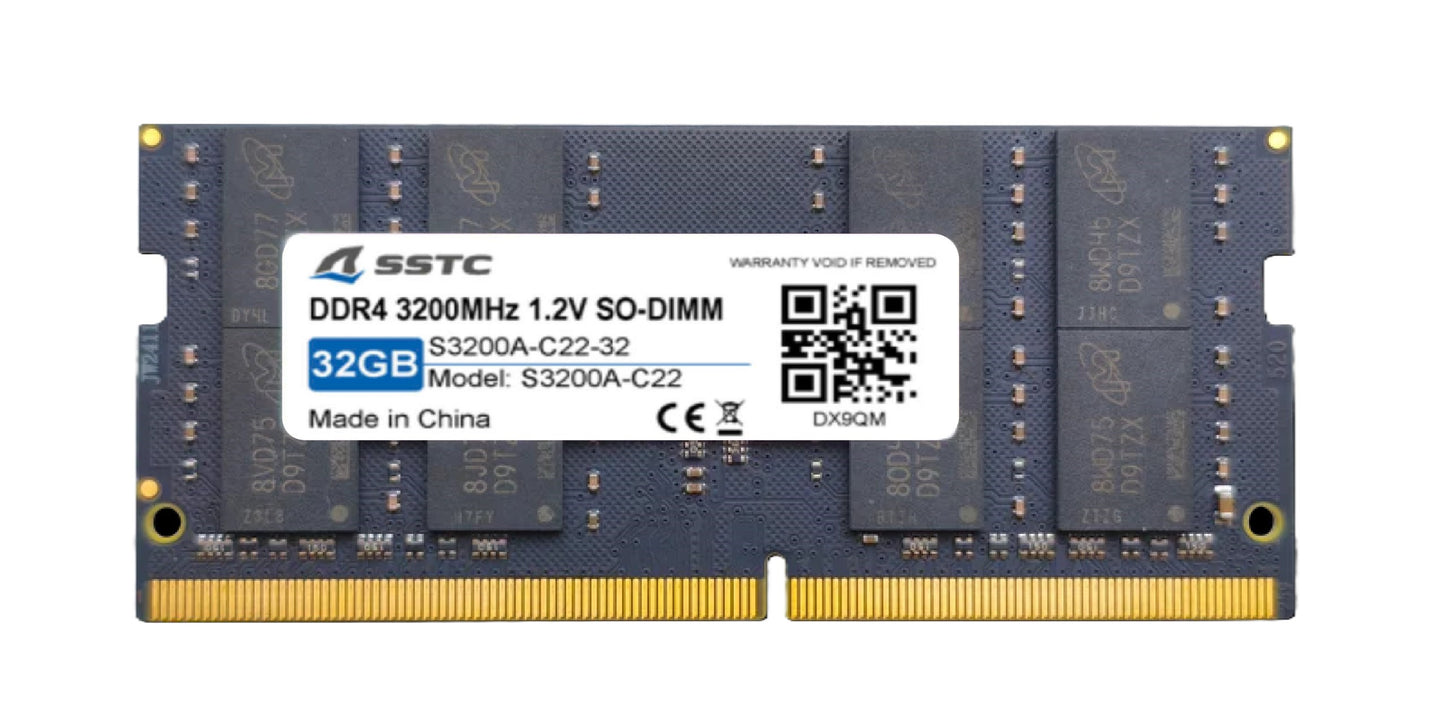

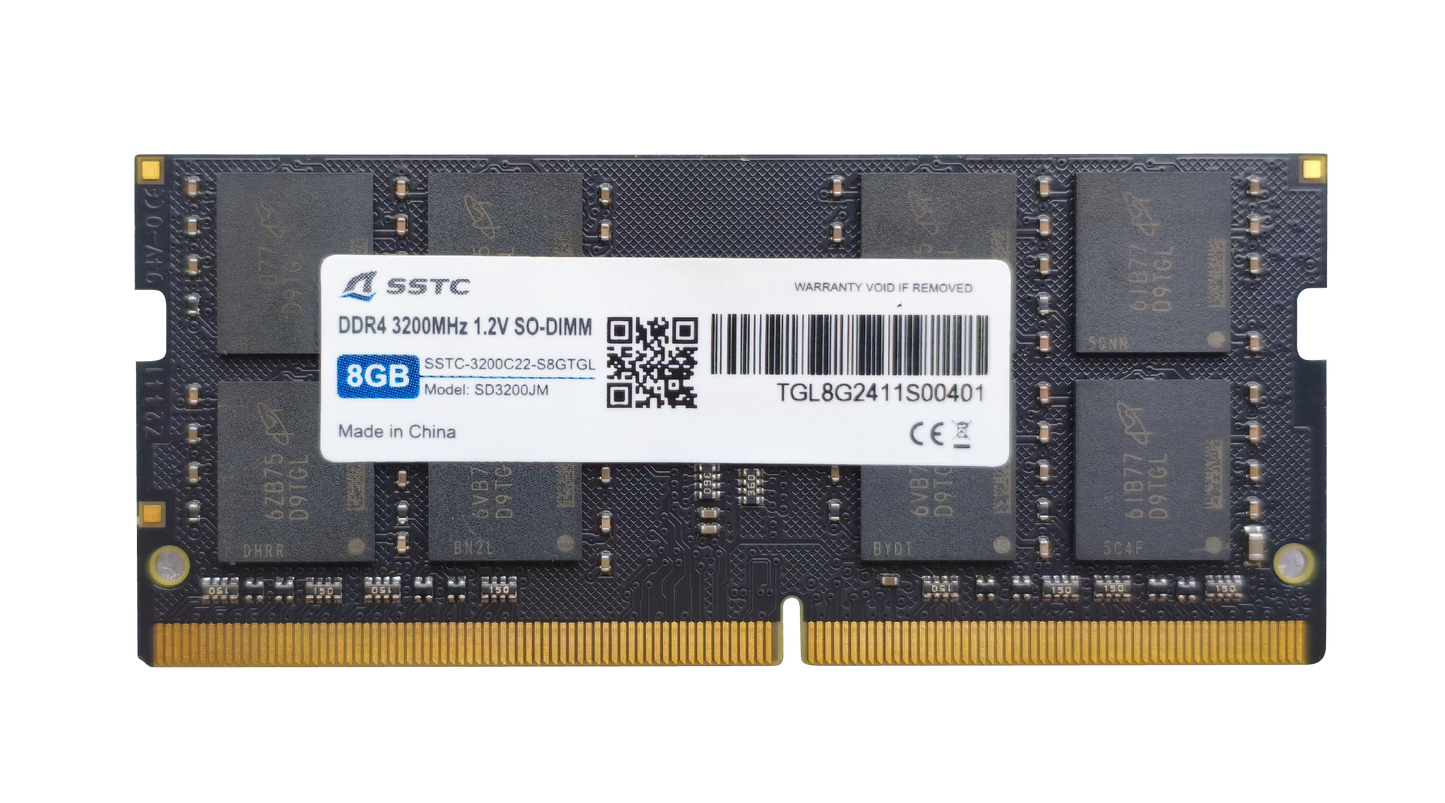

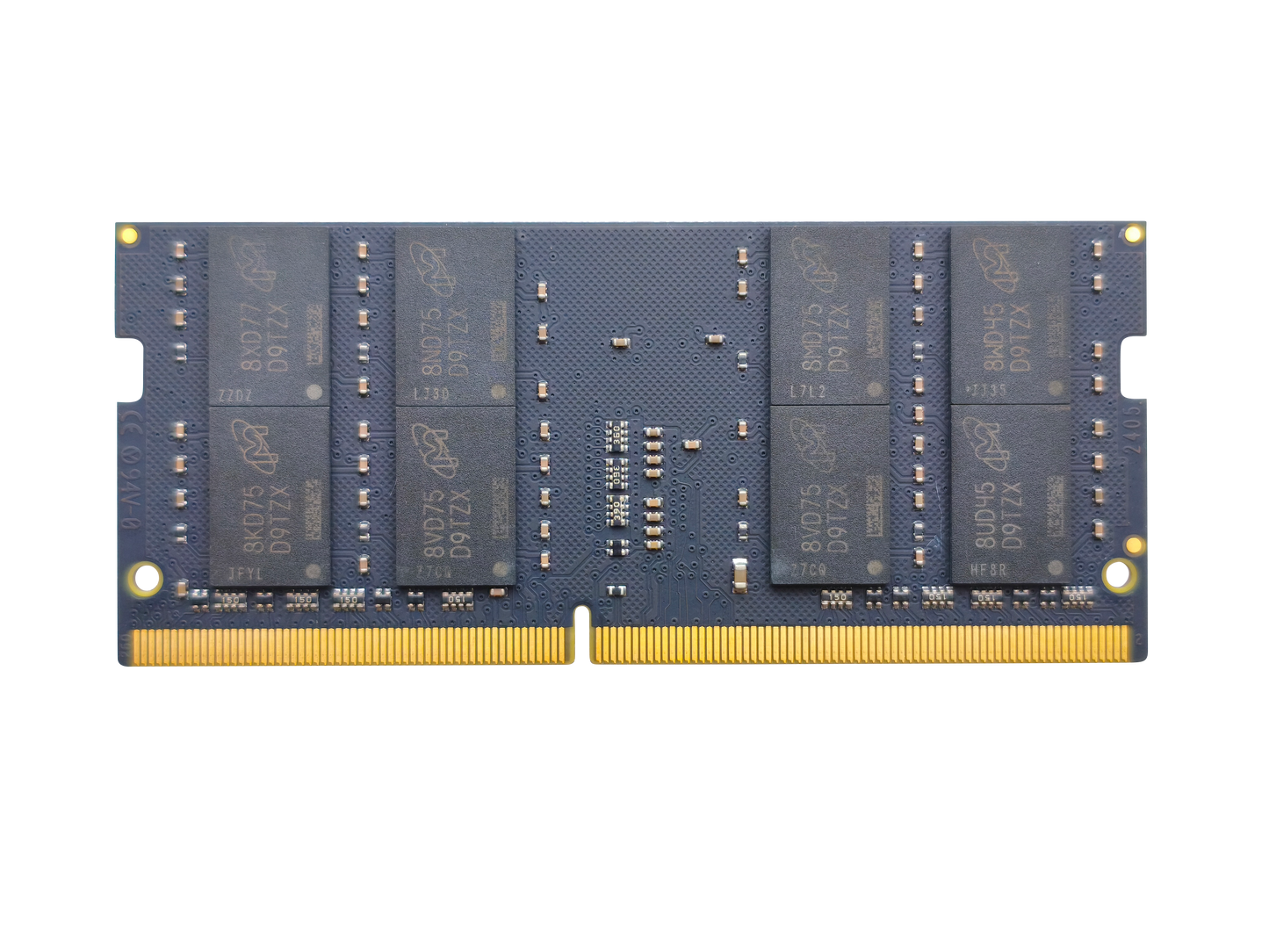

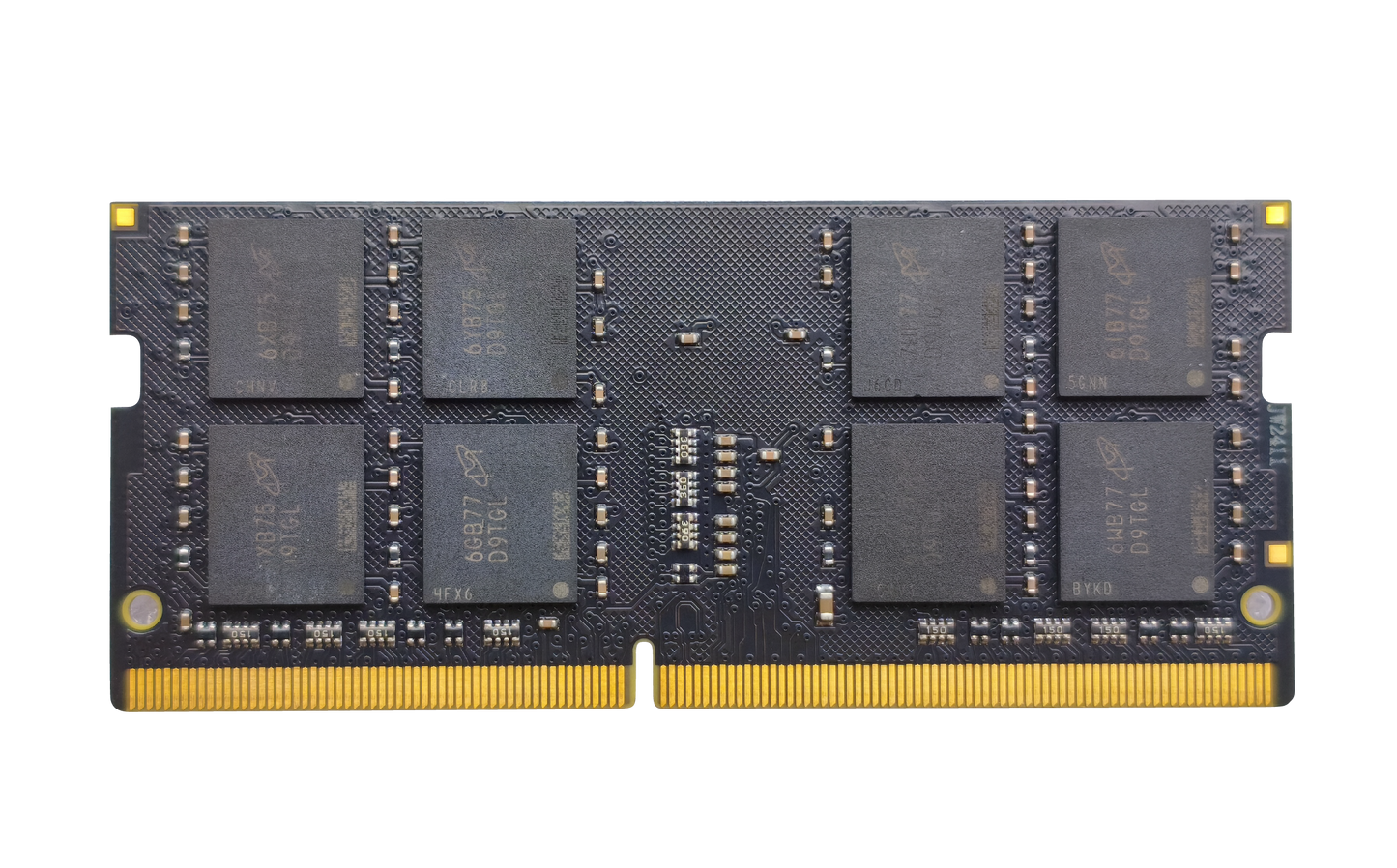

SSTC DDR4 SO-DIMMM 3200MHz-1.2V 8GB/16GB/32GB

RAM Capacity 8GB 16GB 32GB

Interface	DDR4 SDRAM 260 Pins
Туре	Unbuffered Small Outline Double Data Rate Synchronous DRAM

Features	Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration On-board 12C serial presence-detect (SPD) EEPROM Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Data bus write cyclic redundancy check (CRC) Temperature controlled refresh (TCR) Command/Address (CA) parity Per DRAM Addressability is supported 8-bit pre-fetch Fly-by topology Command/Address latency (CAL) Terminated control command and address bus PCB: Height 1.18" (30.00mm) Gold edge contacts RoHS Compliant and Halogen-Free














Power	Supply Voltage: Min 1.4V, Max 1.26V, Typical 1.2V Supply Voltage for Output: Min 1.4V, Max 1.26V, Typical 1.2V Supply Voltage for DRAM Activating: Min 2.375V, Max 2.75V, Typical: 2.5V Notes


	1. Under all conditions VDDQ must be less than or equal to VDD.
	2. VDDQ tracks with VDD. AC parameters are measured with VDD and VDDQ tied together.
	3. DC bandwidth is limited to 20MHZ.
Capacity	8GB/16GB/32GB
Temperature Range	Normal Operating Temperature Range: 0-85°C Extended Temperature Range: -85-95°C
Speed / Latency / Voltage	2666MHz/19-19-19-43/1.2V
	3200MHz/22-22-22-53/1.2V
Series	SO-DIM
Chip	HYNIX / MICRON
