AMD MOTHERBOARD

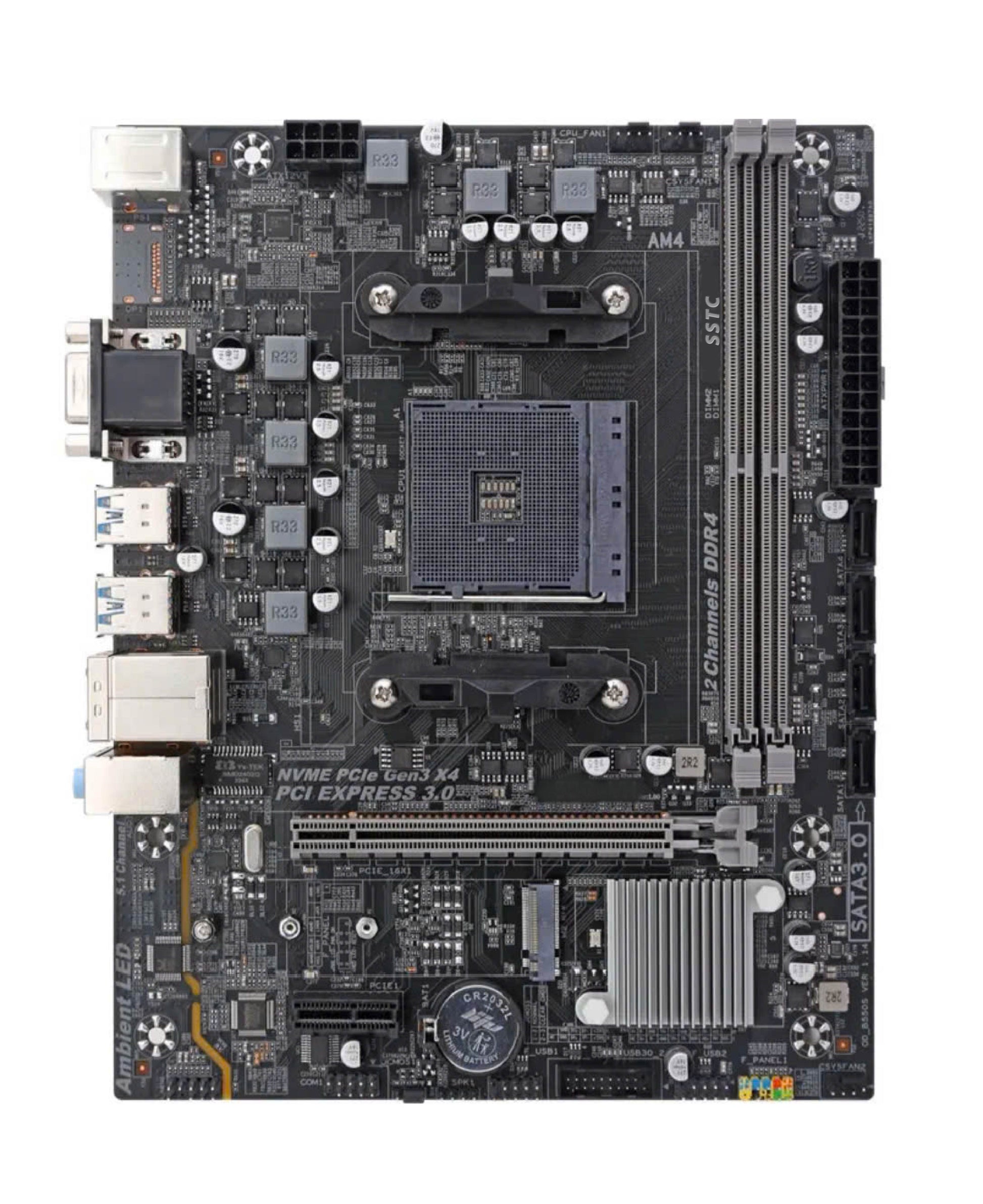

SSTC B550M-HV

SSTC B550M-HV

View full details



Model B550M-HV
SKU B550M-HV
CPU Supports AMD AM4 processors
(Ryzen 3000 series, 4000 series, and 5000 series CPUs; 4000G series and 5000G series).
Chipset AMD B550
Memory 2 x DDR4 DIMM sockets supporting up to 64GB/3600Mhz (32GB per socket)
Display Output -1 x HDMI® port (1.4)
-1 x VGA Port
Expansion Slots -1 x PCIE-16X (support 4.0x16)
-1 x PCIE-1X
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
-1 x M.2 port (NVMe/NGFF supported depending on CPU), supports PCIE 3.0/4.0 x4 speeds
-1 x 4 SATA 3.0 ports
Network -1 x Realtek Realtek 8111H/8106E (1000M/100M) Ethernet
USB Rear USB (Total 8 ports)
-4 x USB 3.2
-2 x USB 2.0
Front USB:
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek ALC897
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

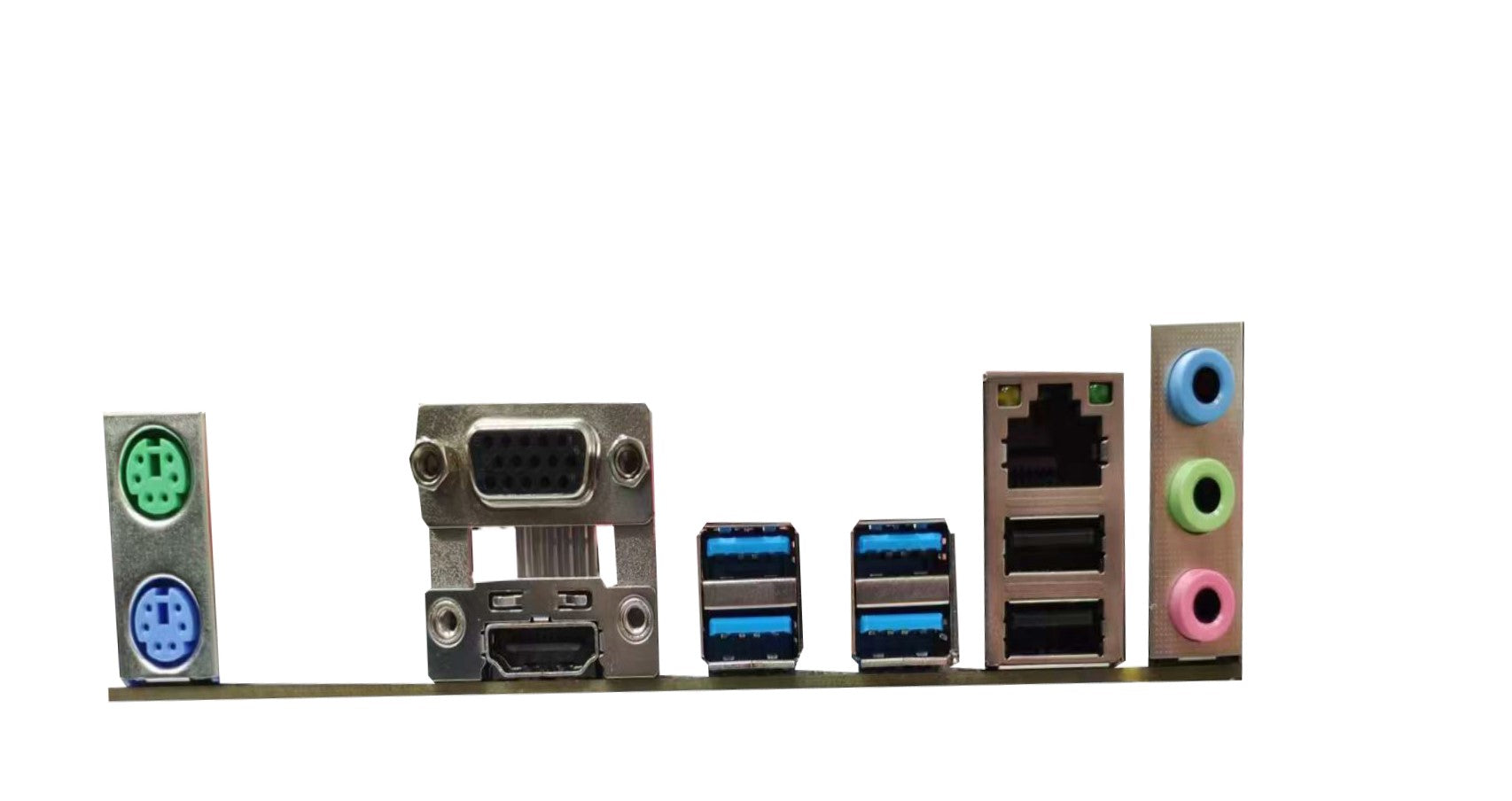

Back Panel
I/O Ports		 4 x USB 3.2 ports (Type-A)
2 x USB 2.0 ports (Type-A)
1 x HDMI® Port
1 x VGA Port
1 x Realtek Ethernet port
3 x Audio In/Output
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related:
-1 x 4-pin CPU Fan header
-2 x 4-pin CHA_SYS Fan header
Power related:
-1 x 24 pin Main Power connector
-1 x 8 pin +12V Power connector
Storage related:
-1 x M.2 slot
-4 x SATA 6Gb/s ports
USB:
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
-1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous:
-4 x ARGB LED strip headers
-1 x Clear CMOS header
-1 x Speaker header
-1 x 10-1 pin System Panel header
-1 x JCMOS header
-1 x COM232 Port
