AMD MOTHERBOARD

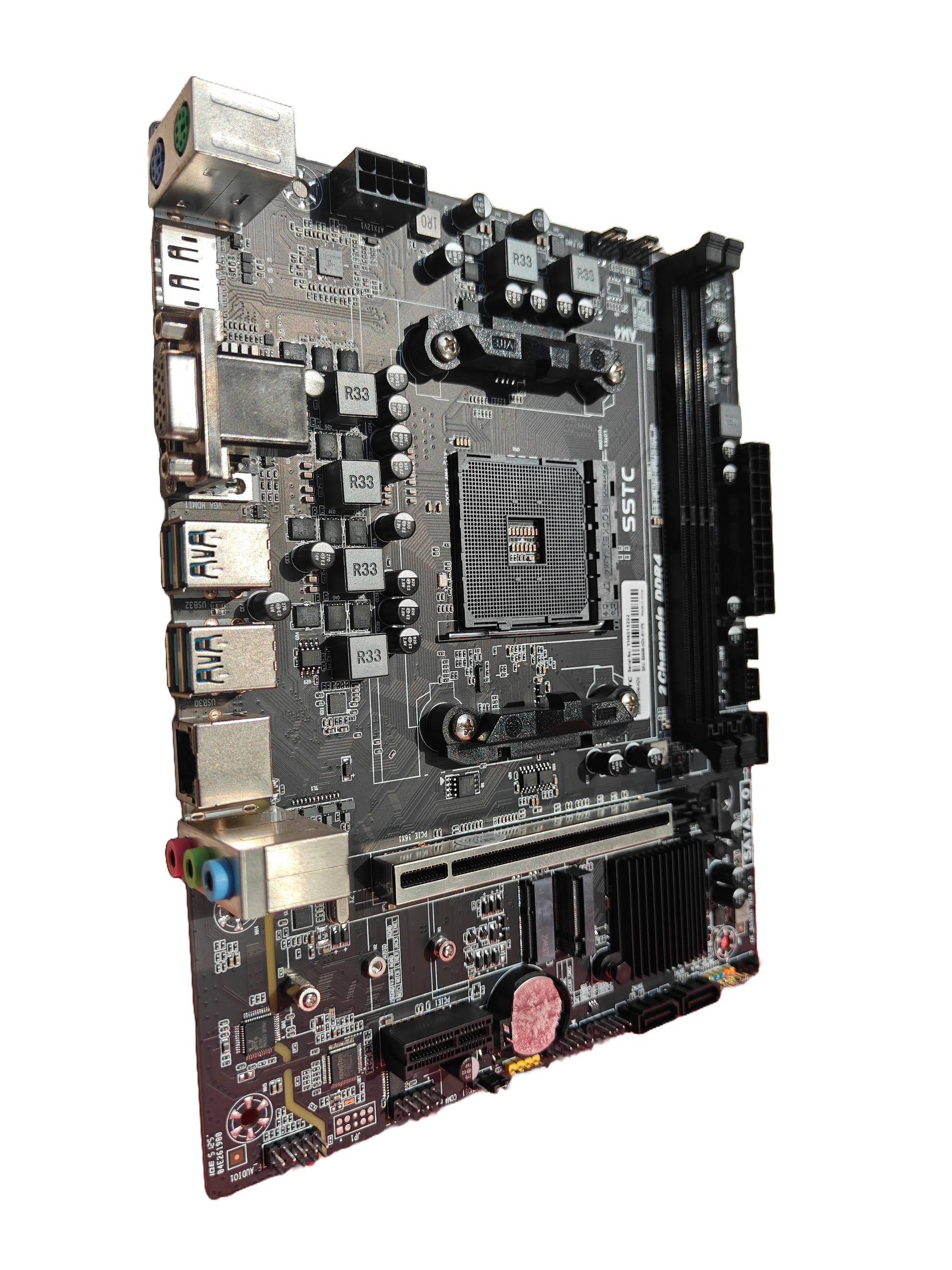

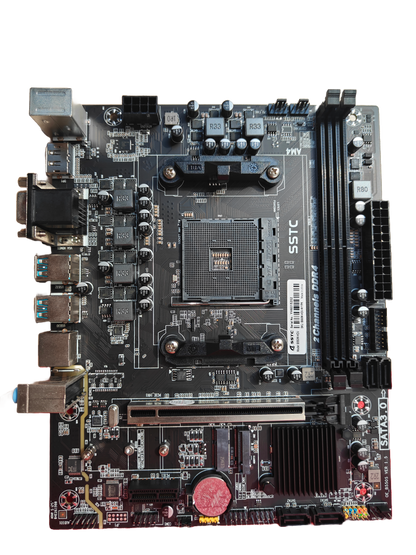

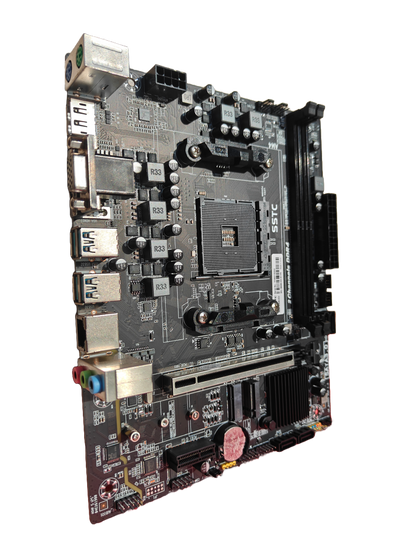

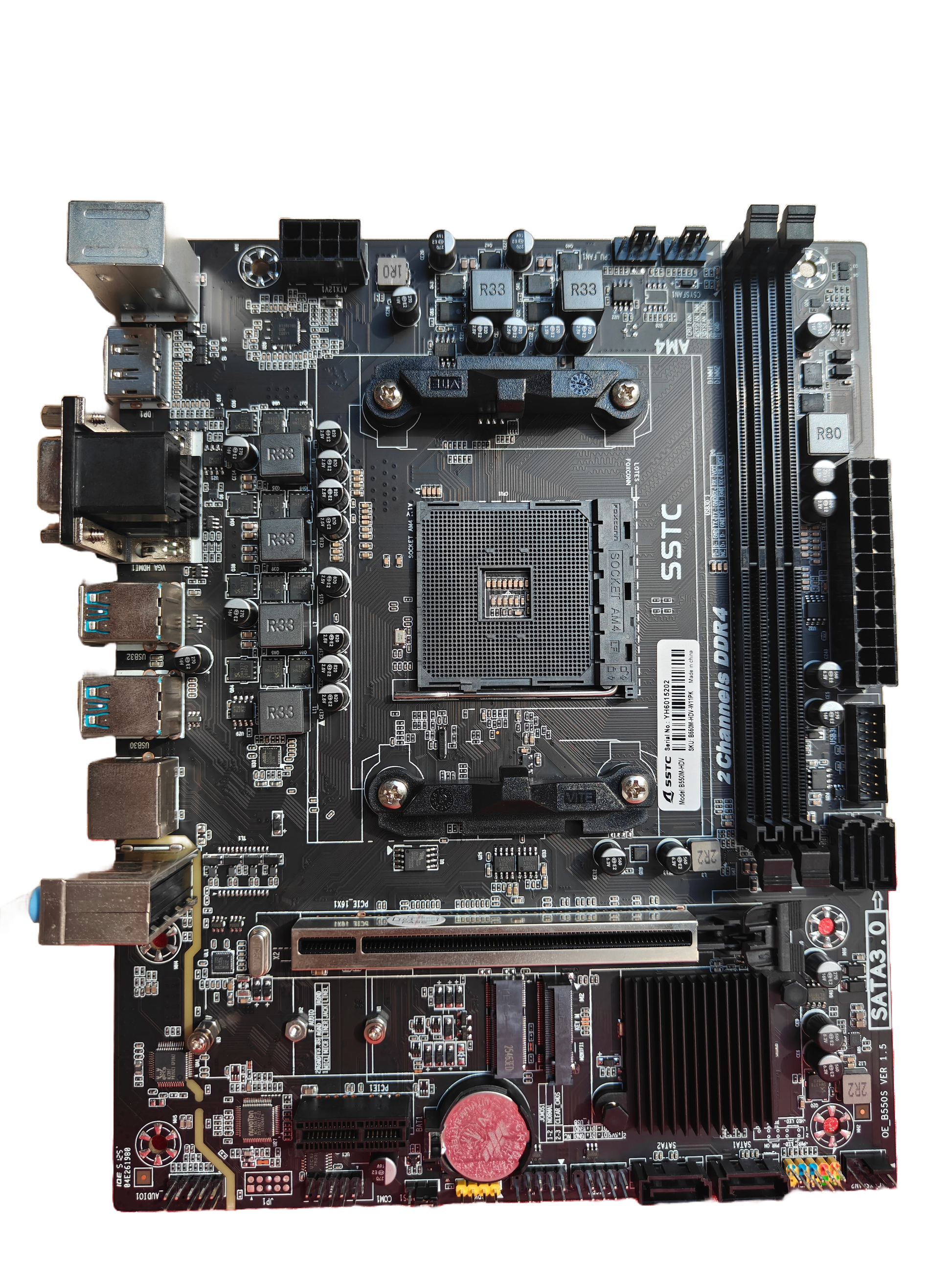

SSTC B550M-HDV
SSTC B550M-HDV
-
Specification
-
Download
-
Support
| Model | B550M-HDV |
| SKU | B550M-HDV |
| CPU | Supports AMD AM4 processors (Ryzen 3000 series, 4000 series, and 5000 series CPUs; 4000G series and 5000G series). |
| Chipset | AMD B550 |
| Memory | 2 x DDR4 DIMM sockets supporting up to 64GB/3600Mhz (32GB per socket) |
| Display Output | -1 x HDMI® port (1.4) -1 x Display Port -1 x VGA Port |
| Expansion Slots | -1 x PCIE-16X (support 4.0x16) -1 x PCIE-1X |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports -1 x M.2 port (NVMe/NGFF supported depending on CPU), supports PCIE 3.0/4.0 x4 speeds -1 x 4 SATA 3.0 ports |
| Network |
-1 x Realtek Realtek 8111H(1000M) Ethernet -1 x M.2 slot type 2232 for WIFI |
| USB | Rear USB (Total 6 ports) -4 x USB 3.2 Front USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek ALC897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Features - Audio Shielding - Dedicated audio PCB layers |

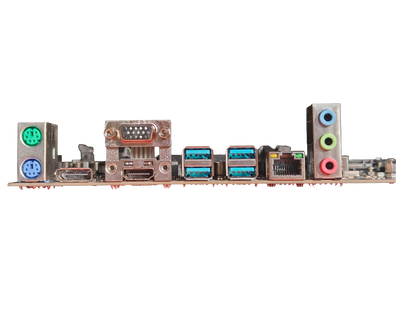

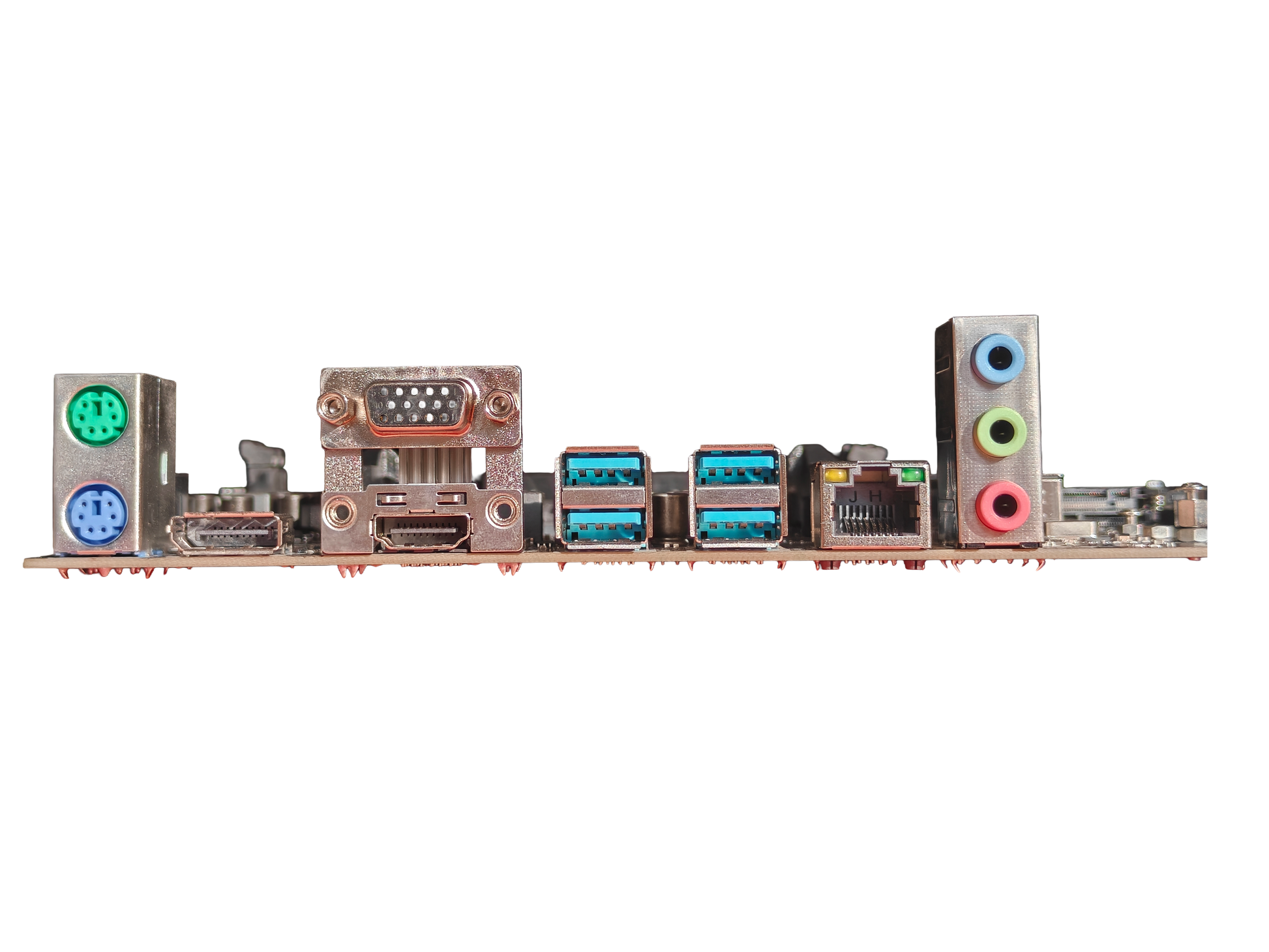

| Back Panel I/O Ports |
4 x USB 3.2 ports (Type-A) 1 x HDMI® Port 1 x DisplayPort 1 x VGA Port 1 x Realtek Ethernet port 3 x Audio In/Output 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: -1 x 4-pin CPU Fan header -2 x 4-pin CHA_SYS Fan header Power related: -1 x 24 pin Main Power connector -1 x 8 pin +12V Power connector Storage related: -1 x M.2 Storage slot -4 x SATA 6Gb/s ports Network: -1 x M.2 slot type 2232 for WIFI USB: -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports -2 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: -1 x Front Audio header -1 x COM232 Port -1 x Clear CMOS header -1 x Speaker header -1 x 10-1 pin System Panel header -1 x JCMOS header |
