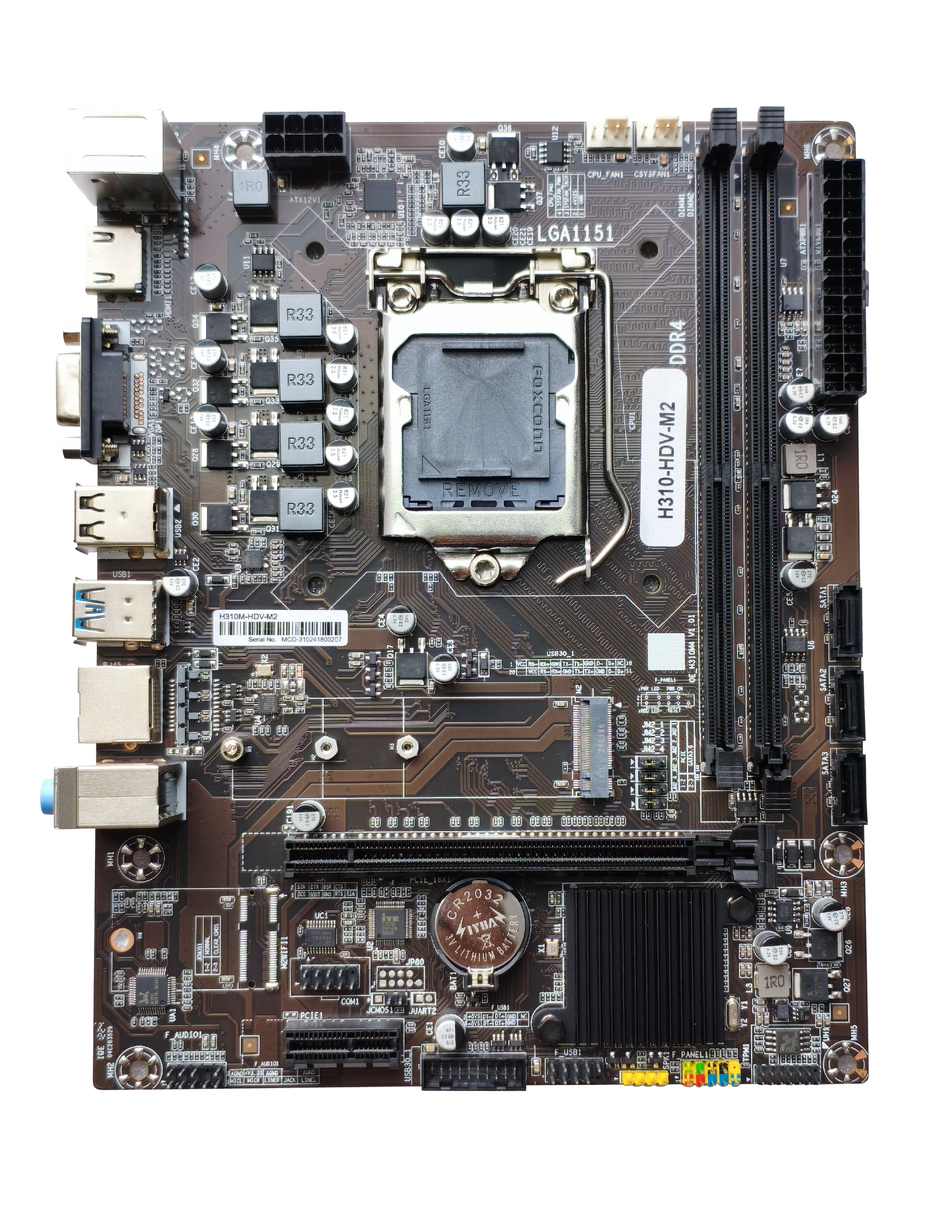

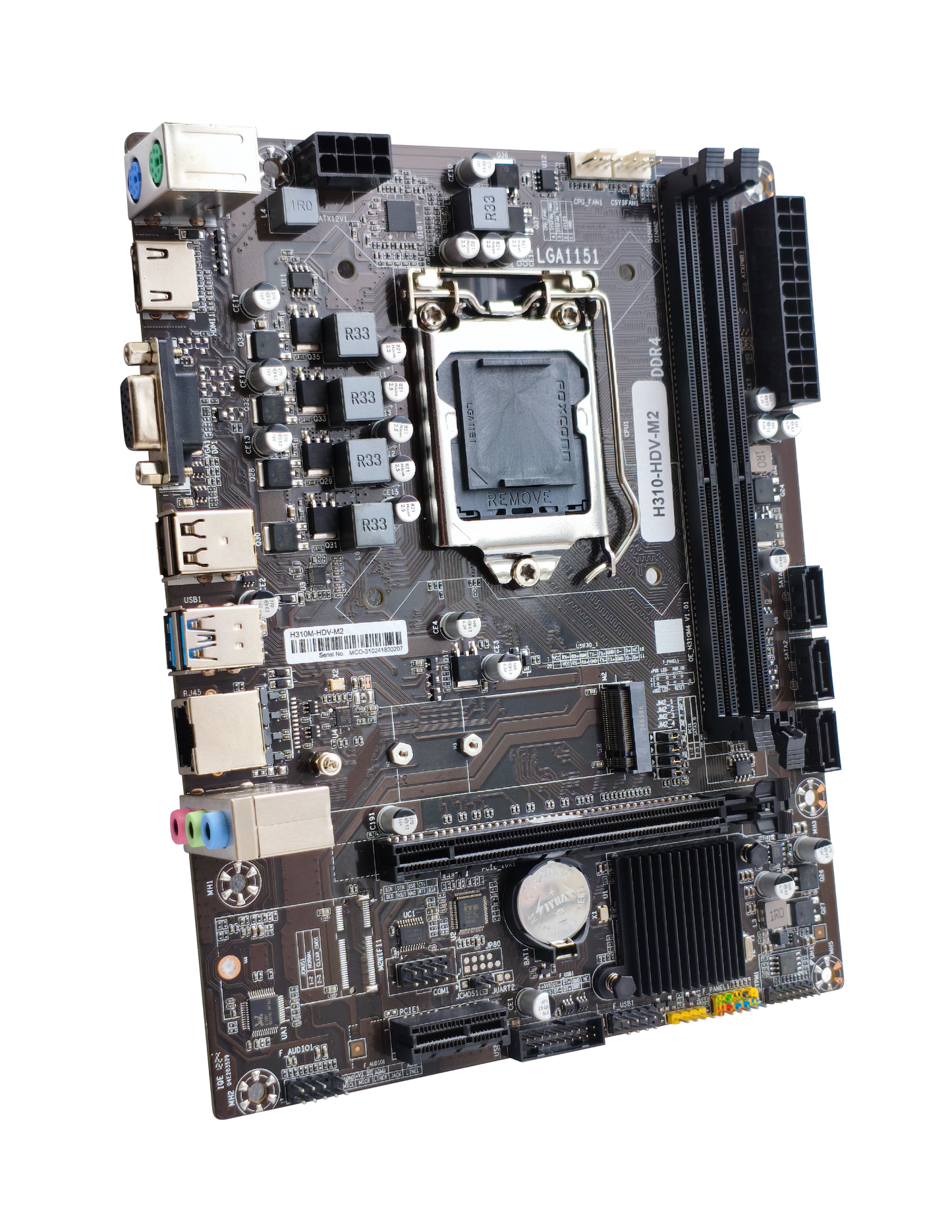

INTEL MOTHERBOARD

SSTC H310M HDV

SSTC H310M HDV

View full details



Model H310M HDV
SKU H310M-HDV-M2
CPU

Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
Chipset Intel® H310 Chipset
Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture

Support for DDR4 2666/2400/2133 MTs memory modules

Support for Extreme Memory Profile (XMP) memory modules
Display Output 1 x D-Sub port
1 x HDMI® port
Expansion Slots 1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x1 slot
Storage Total supports 1 x M.2 slot and 3 x SATA 6Gb/s ports
1 x M.2 slot (Key M), type 2242/2260/2280
3 x SATA 6Gb/s ports
Network 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek ALC897
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

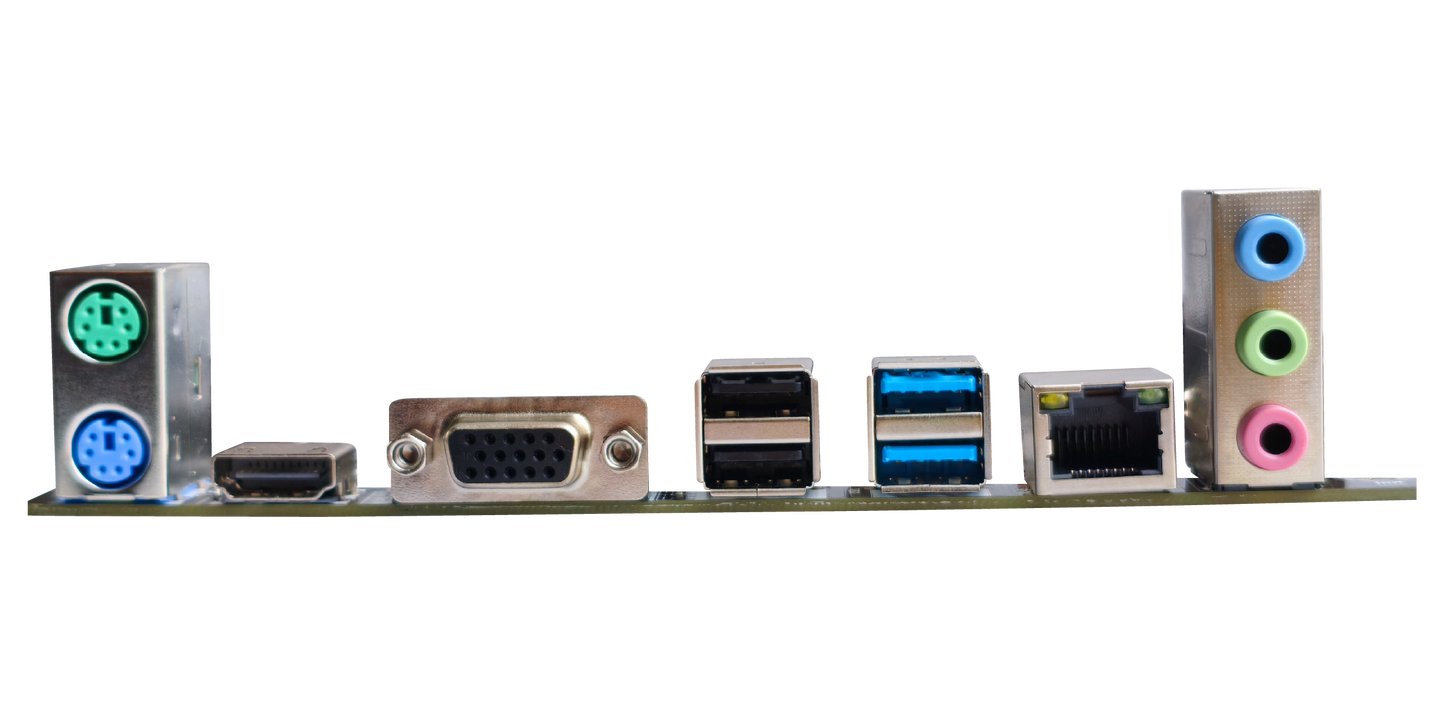

Back Panel
I/O Ports		 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
2 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related:
1 x M.2 slot (Key M)
3 x SATA 6Gb/s ports
USB:
1 x USB 3.2 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous:
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x Speaker header
1 x Clear CMOS header
1 x 10-1 pin System Panel header
1 x SPI TPM header (14-1pin)
