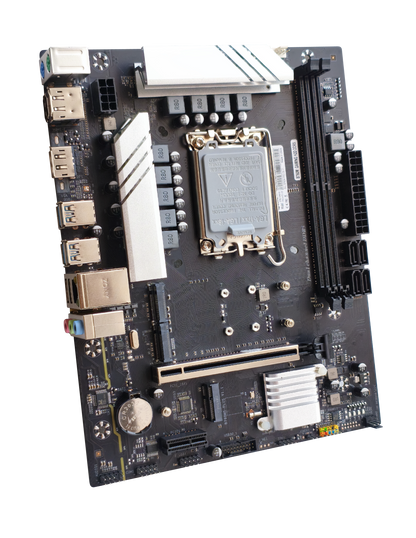

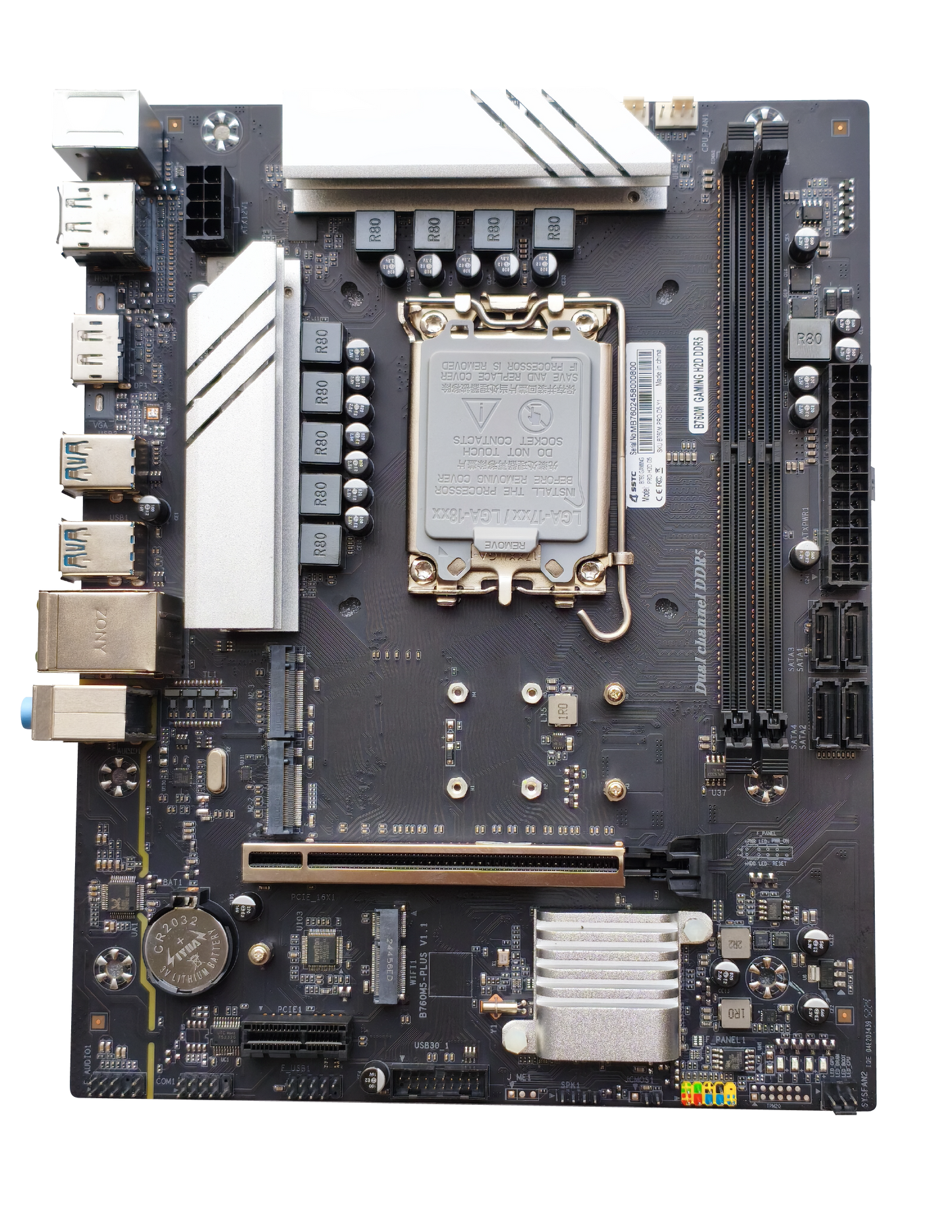

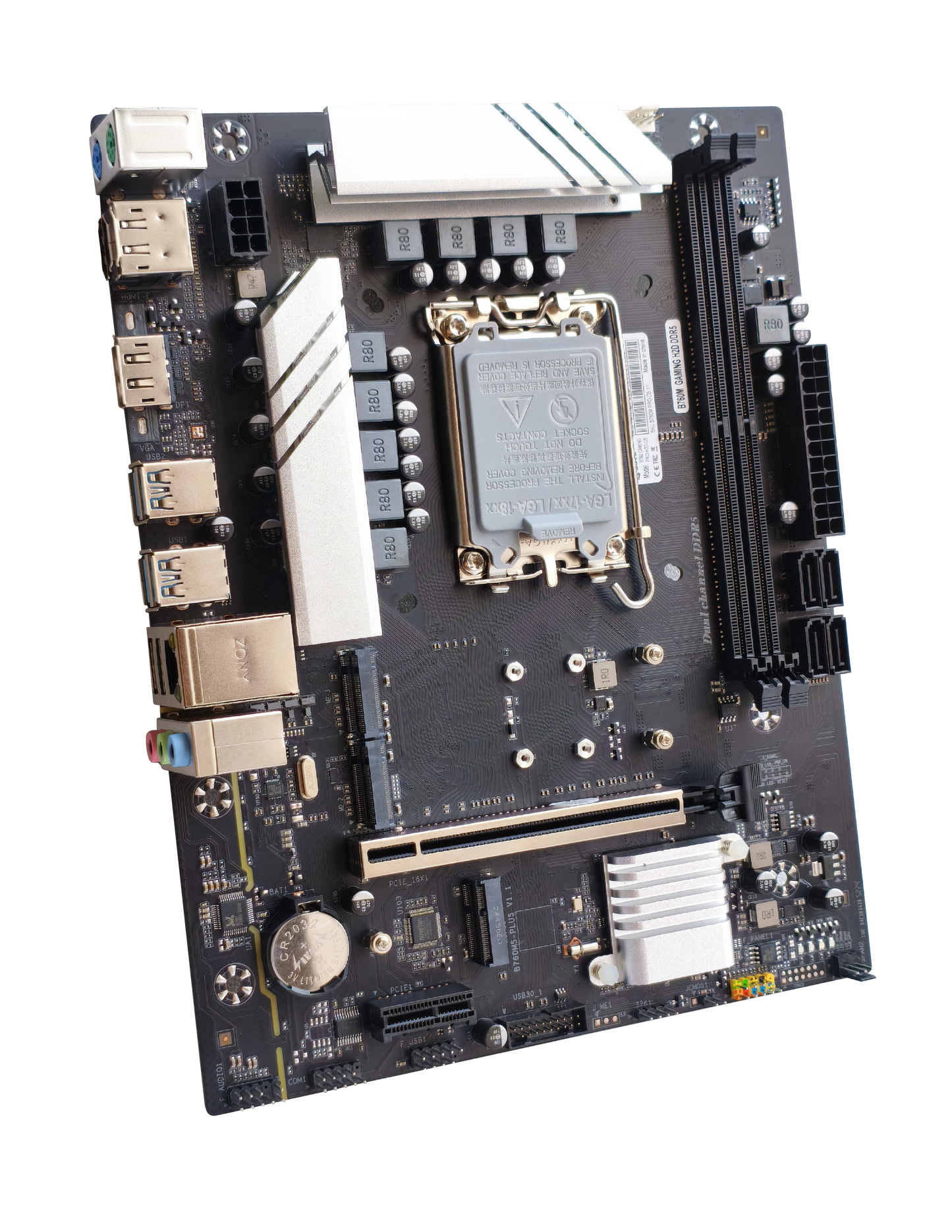

Model B760M GAMING PRO-H2D-D5
SKU B760M-PRO-D5-Y1
CPU Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Chipset B760
Memory 2 x DIMM DDR5 Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules,
Display Output 1 x HDMI® port**
2 x Display Port **
** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.0 and Display Port 1.4
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x1 slot
Storage Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports
2 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
Network Realtek® 1GbE LAN chip (1 Gbps/100 Mbps) Ethernet
1 x M.2 slot type 2232 for WIFI
USB Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek ALC897
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

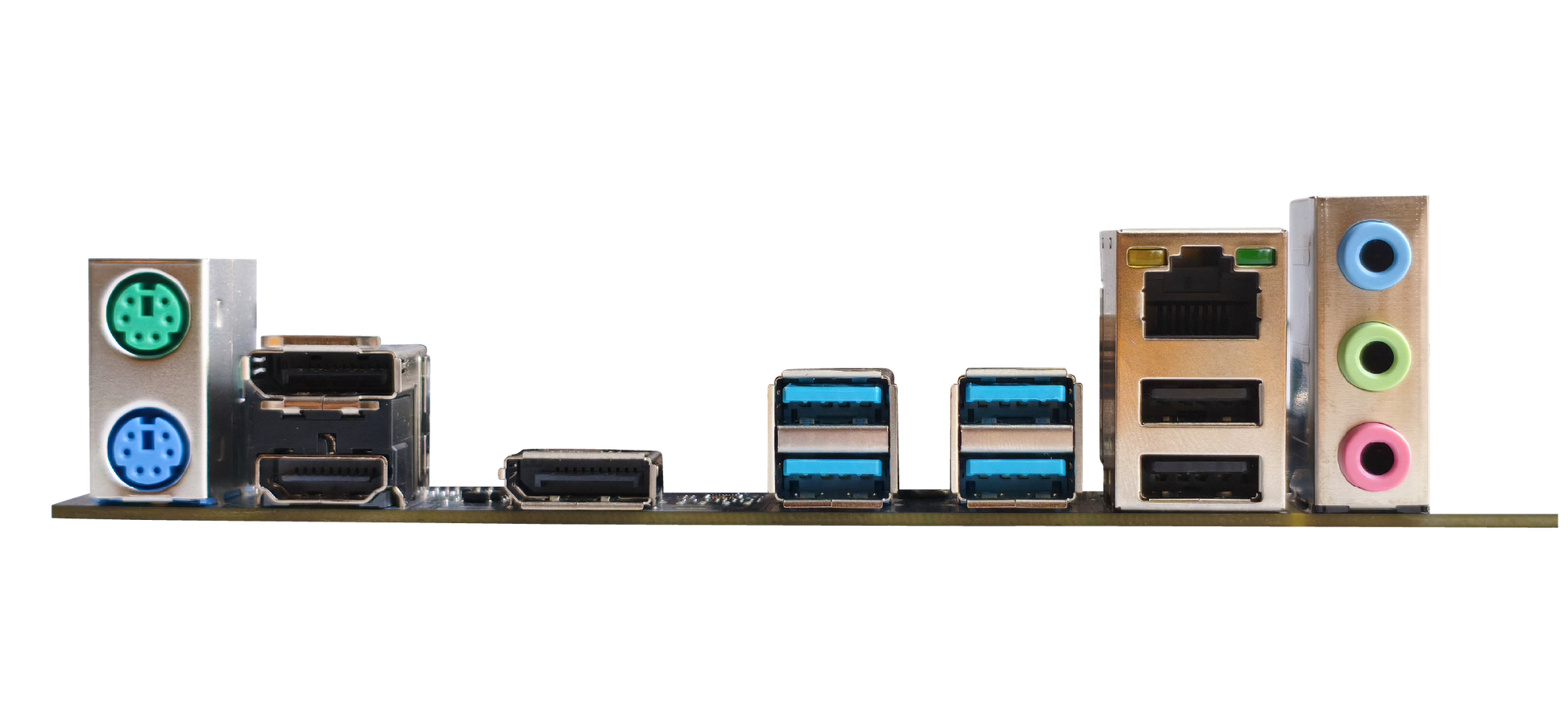

Back Panel I/O Ports

 4x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI® port
2 x Display Port port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
2 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

 Fan and Cooling related:
-1 x 4-pin CPU Fan header
-2 x 4-pin Chassis Fan header
Power related:
-1 x 24-pin Main Power connector
-1 x 8-pin +12V Power connector
Storage related:
-2 x M.2 slot (Key M)
-4 x SATA 6Gb/s ports
USB:
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
-1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous:
-1 x Clear CMOS header
-1 x COM Port header
-1 x Front Panel Audio header (AAFP)
-1 x Speaker header
-1 x 10-1 pin System Panel header
-4 x System debugging LEDs
