INTEL MOTHERBOARD

SSTC B760 GAMING PRO H2D-4D4

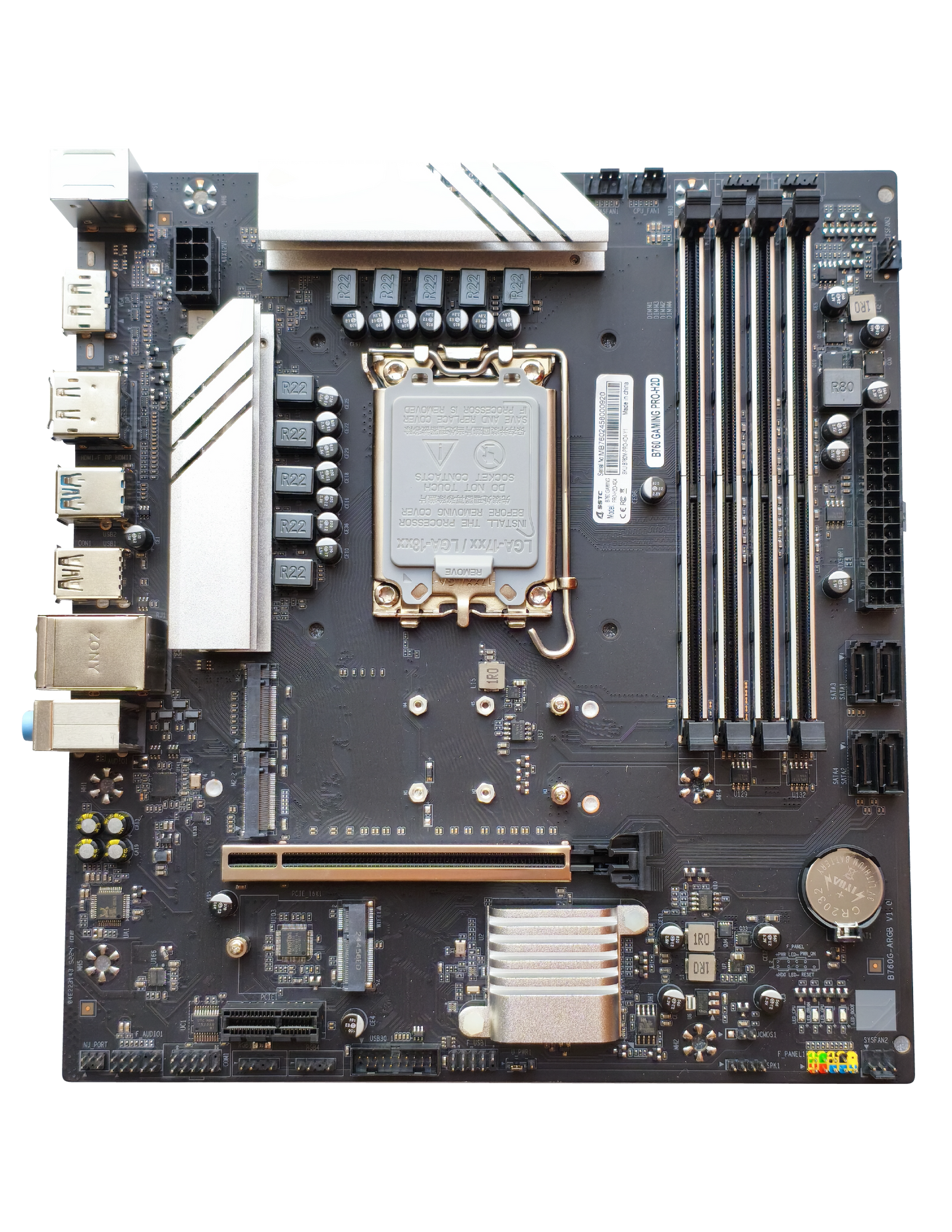

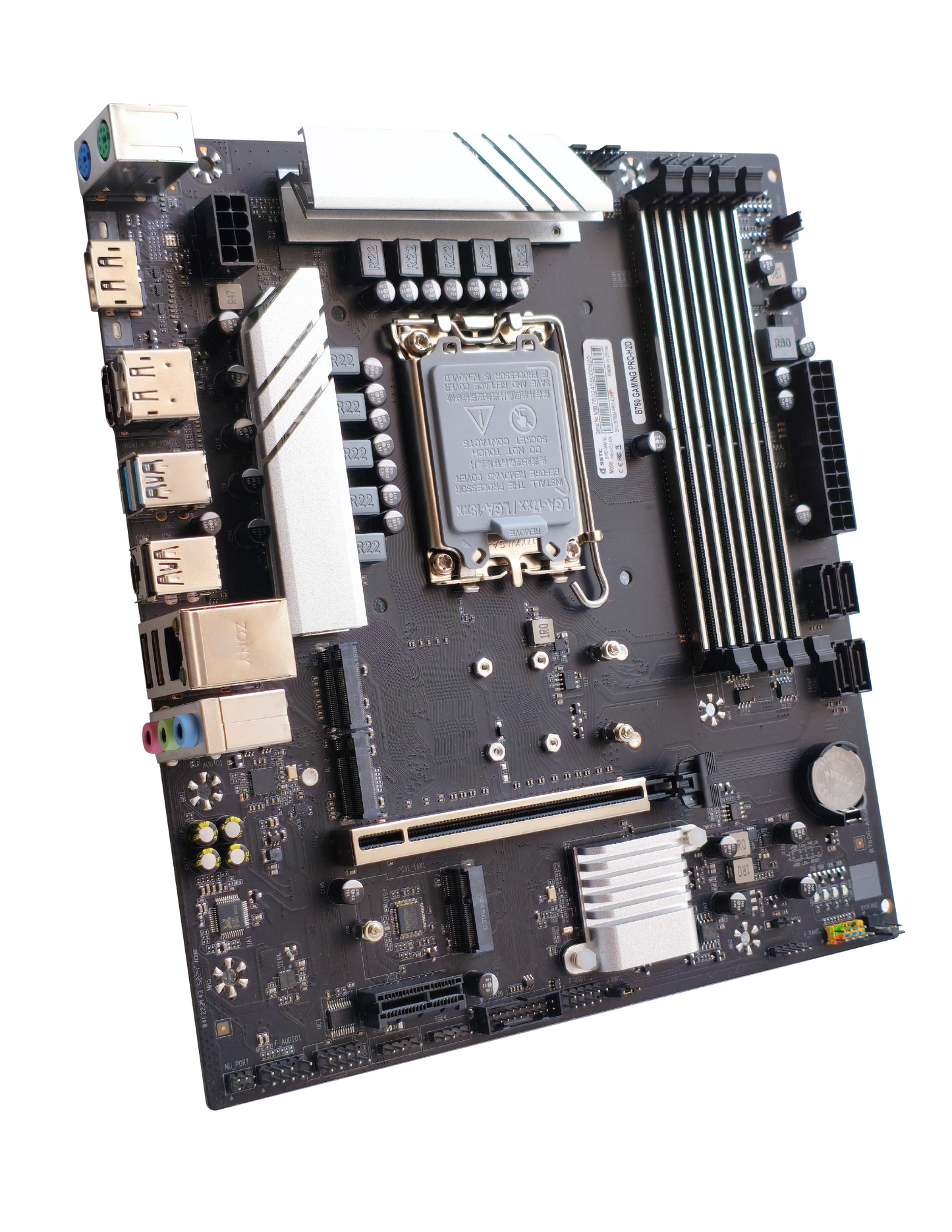

SSTC B760 GAMING PRO H2D-4D4

View full details



Model B760 GAMING PRO-H2D-4D4
SKU B760M-PRO-4D4-Y1
CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors,
Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® Chipset B760
Memory 4 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules,
Display Output 1 x HDMI® port**
2 x Display Port **
** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.0 and Display Port 1.4
Expansion Slots 1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x1 slot
Storage Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports
2 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
Network Realtek® 1GbE LAN chip (1 Gbps/100 Mbps) Ethernet
1 x M.2 slot type 2232 for WIFI
USB Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x USB 2.0 Type-C
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek ALC897
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

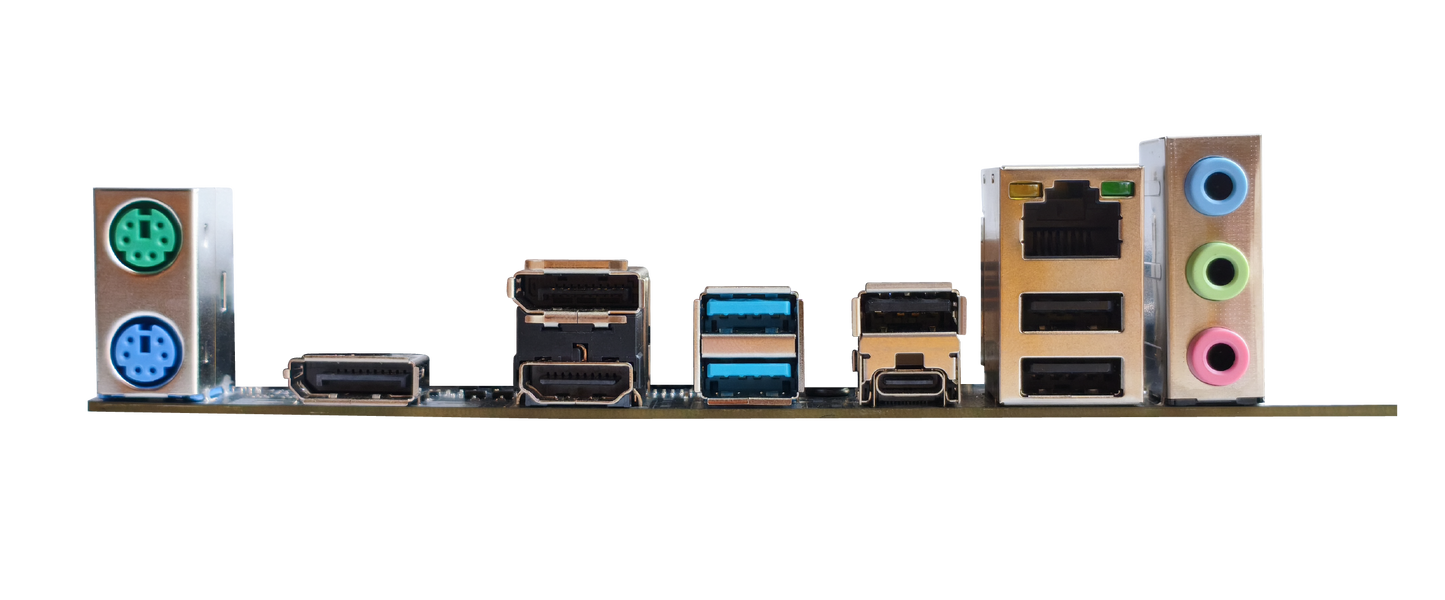

Back Panel
I/O Ports		 2 x USB 3.2 Gen 1 ports (2 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x USB 2.0 Type-C port
1 x HDMI® port
2 x DisplayPort
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
2 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related:
-1 x 4-pin CPU Fan header
-3 x 4-pin Chassis Fan header
Power related:
-1 x 24-pin Main Power connector
-1 x 8-pin +12V Power connector
Storage related:
-2 x M.2 slot (Key M)
-4 x SATA 6Gb/s ports
USB:
-1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
-1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous:
4 x RGB LED strip headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
4 x System debugging LEDs
