Specification
-
Download
-
Support

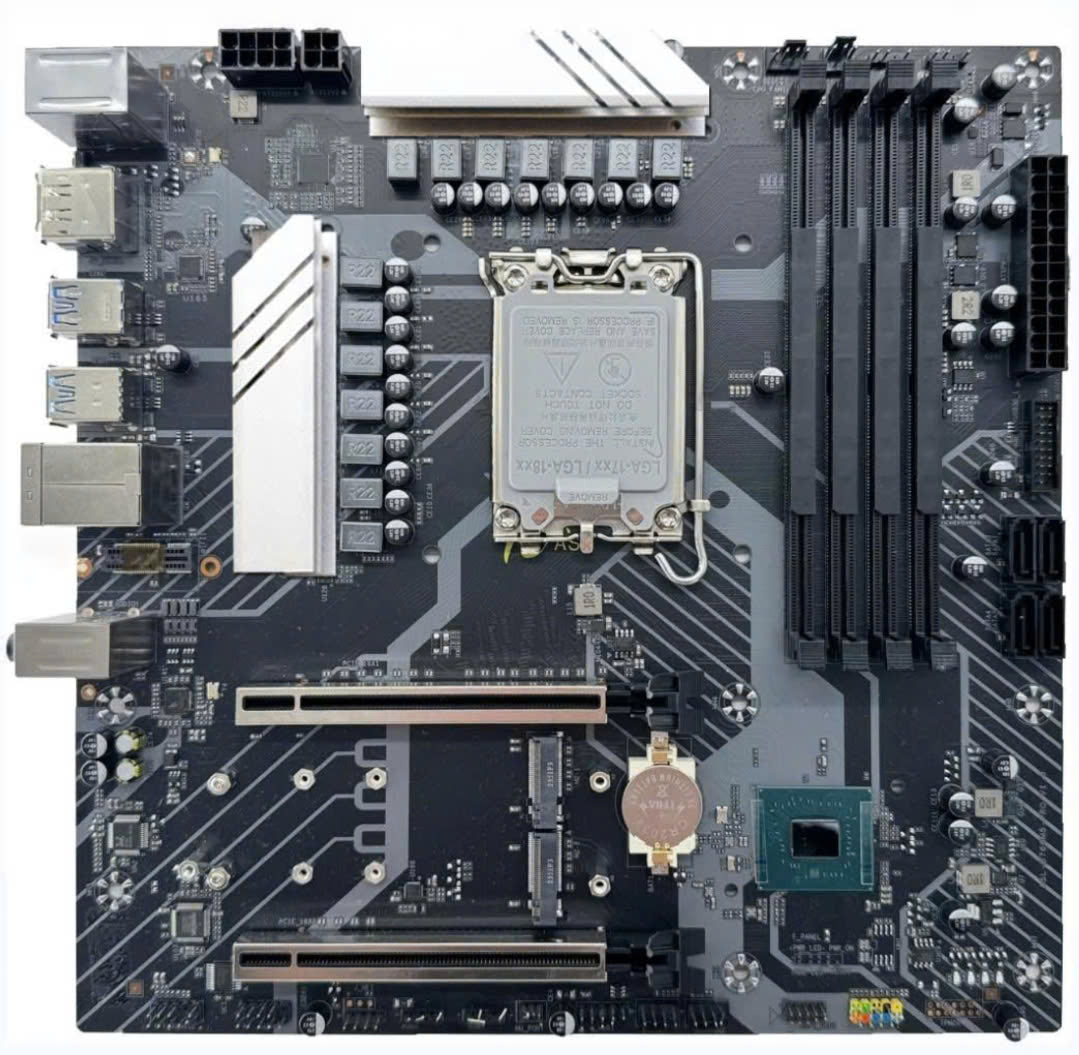

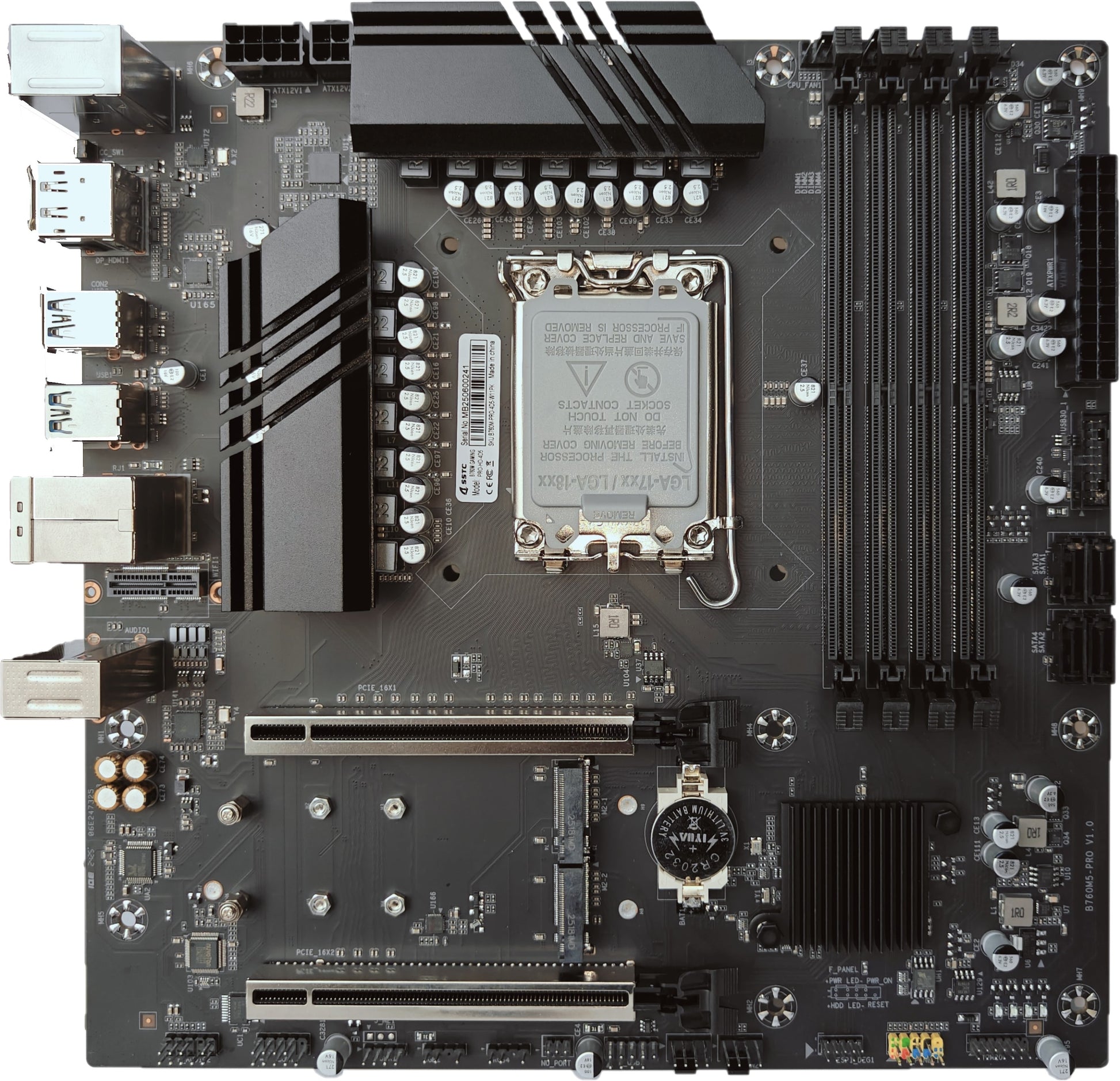

| Model | B760M HD-4D5 |
| SKU | B760M-HD-4D5 |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, |
| Chipset | Intel® Chipset B760 |
| Memory | 4 x DIMM, DDR5 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, |
| Display Output | 1 x HDMI® port** 1 x Display Port ** ** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.0 and Display Port 1.4 |
| Expansion Slots | 2 x PCIe 4.0 x16 slot |
| Storage | Total supports 2 x M.2 slot and 4 x SATA 6Gb/s ports 2 x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports |
| Network | Realtek® 1GbE LAN chip (1 Gbps/100 Mbps) Ethernet |
| USB | Rear USB (Total 8 ports) 3 x USB 3.2 Gen 1 ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x USB 2.0 Type-C Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek ALC897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Features - Audio Shielding - Dedicated audio PCB layers |
| Back Panel I/O Ports |

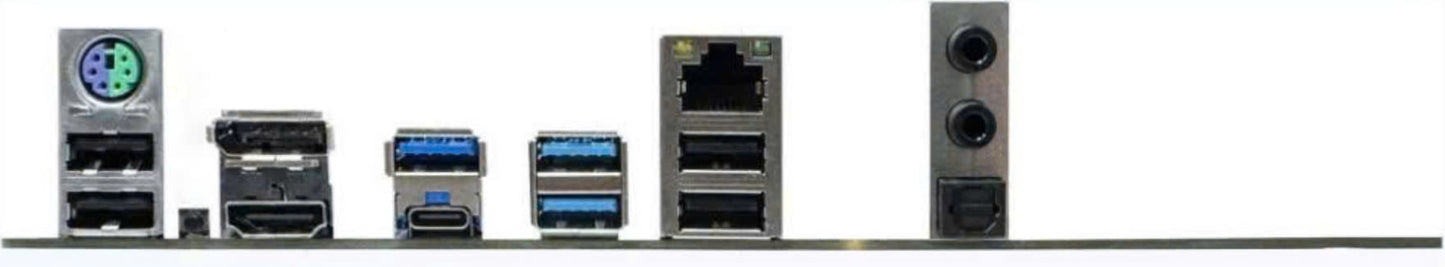

3 x USB 3.2 Gen 1 ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x USB 2.0 Type-C port 1 x HDMI® port 1 x DisplayPort 1 x Realtek 2.5Gb Ethernet port 2 x Audio Output 1 x SPDIF Optical Audio Output 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: -1 x 4-pin CPU Fan header -3 x 4-pin Chassis Fan header Power related: -1 x 24-pin Main Power connector -1 x 8+4 pin +12V Power connector Storage related: -2 x M.2 slot (Key M) -4 x SATA 6Gb/s ports USB: -1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports -1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 4 x RGB LED strip headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header 4 x System debugging LEDs |
