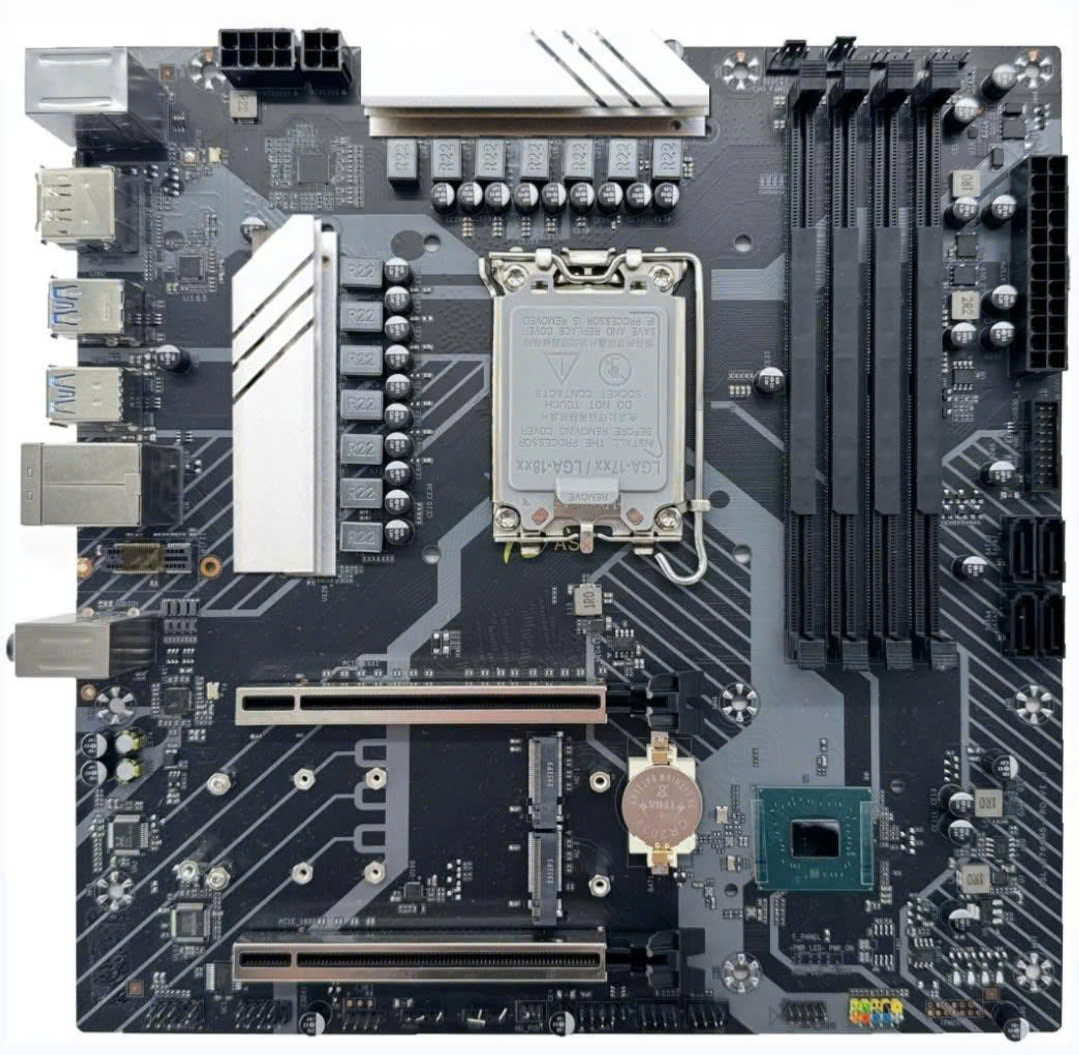

SSTC B760M-HDV/H2D

FOR ENTRY LEVEL COMPUTER and office use

Optimal design for office computers with support for up to 125W Intel 12th, 13th and 14th generation CPUs. B760-HDV/H2D is not only equipped with maximum 3 configurable video output ports but It also supports up to 2 x M.2 NVMe PCIe 4.0 for super fast SSD and another M.2 slot for WIFI with optional WIFI 5 1750Mbs and WIFI 6 2400Mbs connection.

MODEL

  • SSTC B760M HDV

    CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen / LGA 1700
    MEMORY: 2x DDR4 3200MHz, Maximum Memory 64GB

    DISPLAY: 1x HDMI, 1x Display Port, 1x D-Sub

    STORAGE: 2 x M.2 NVMe PCIe 4.0 (4x4), 4x SATA 6Gbs

    USB: 4x USB 3.2 (Rear), 2x USB 2.0 (Rear), 2x USB 3.2 (Front), 2x USB 2.0 (Front)
    LAN: 1x Realtek® Gigabit Ethernet port
    LED: 4x System debugging LEDs

    More details

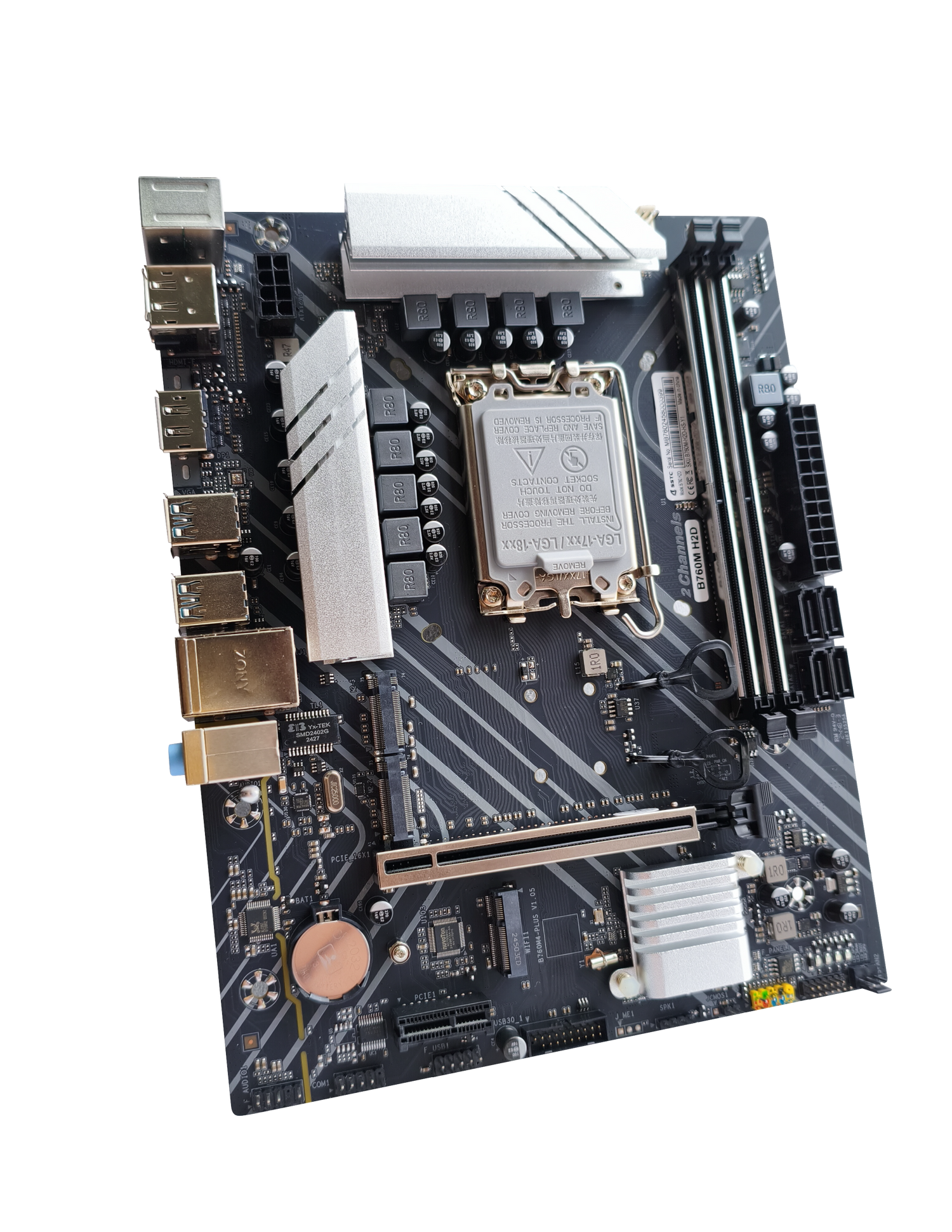

  • SSTC B760M H2D

    CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen / LGA 1700
    MEMORY: 2x DDR4 3200MHz, Maximum Memory 64GB

    DISPLAY: 1x HDMI, 2x Display Port

    STORAGE: 2 x M.2 NVMe PCIe 4.0 (4x4), 4x SATA 6Gbs

    USB: 4x USB 3.2 (Rear), 2x USB 2.0 (Rear), 2x USB 3.2 (Front), 2x USB 2.0 (Front)
    LAN: 1x Realtek® Gigabit Ethernet port
    LED: 4x System debugging LEDs

    More details
1 2

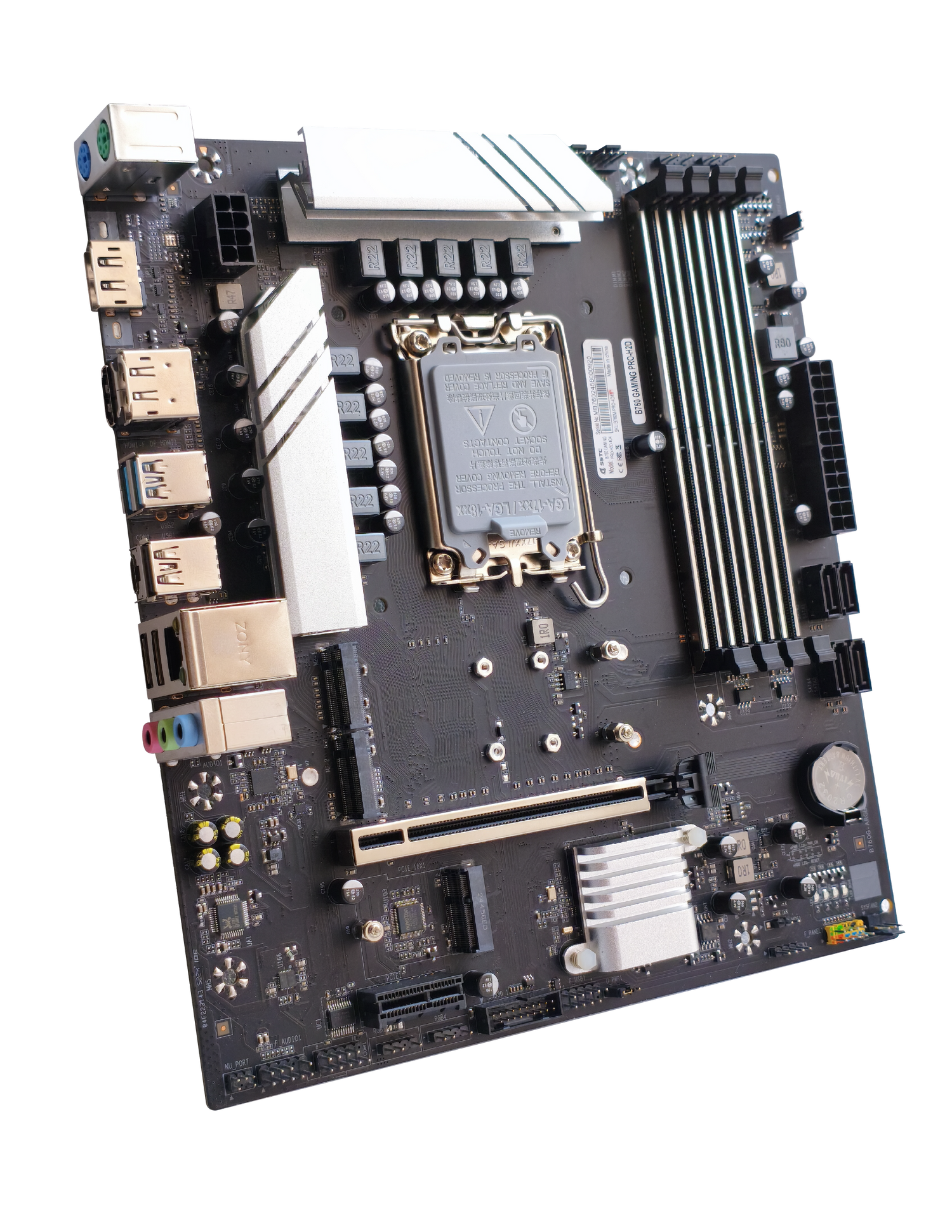

SSTC B760 GAMING PRO

Gaming and Performance Computer

Optimal design for office computers with support for up to 220W Intel 12th, 13th and 14th generation CPUs. B760-HDV/H2D is not only equipped with maximum 3 configurable video output ports but It also supports up to 2 x M.2 NVMe PCIe 4.0 for super fast SSD and another M.2 slot for WIFI with optional WIFI 6 2400Mbs connection.

MODEL

  • SSTC B760 GAMING PRO H2D

    CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen / LGA 1700
    MEMORY: 4x DDR4 3200MHz, Maximum Memory 64GB

    DISPLAY: 1x HDMI, 2x Display Port

    STORAGE: 2 x M.2 NVMe PCIe 4.0 (4x4), 4x SATA 6Gbs

    USB: 4x USB 3.2 (Rear), 2x USB 2.0 (Rear), 2x USB 3.2 (Front), 2x USB 2.0 (Front)
    LAN: 1x Realtek® Gigabit Ethernet port
    LED: 4x System debugging LEDs, 4 x RGB LED strip headers

    More details
1 1

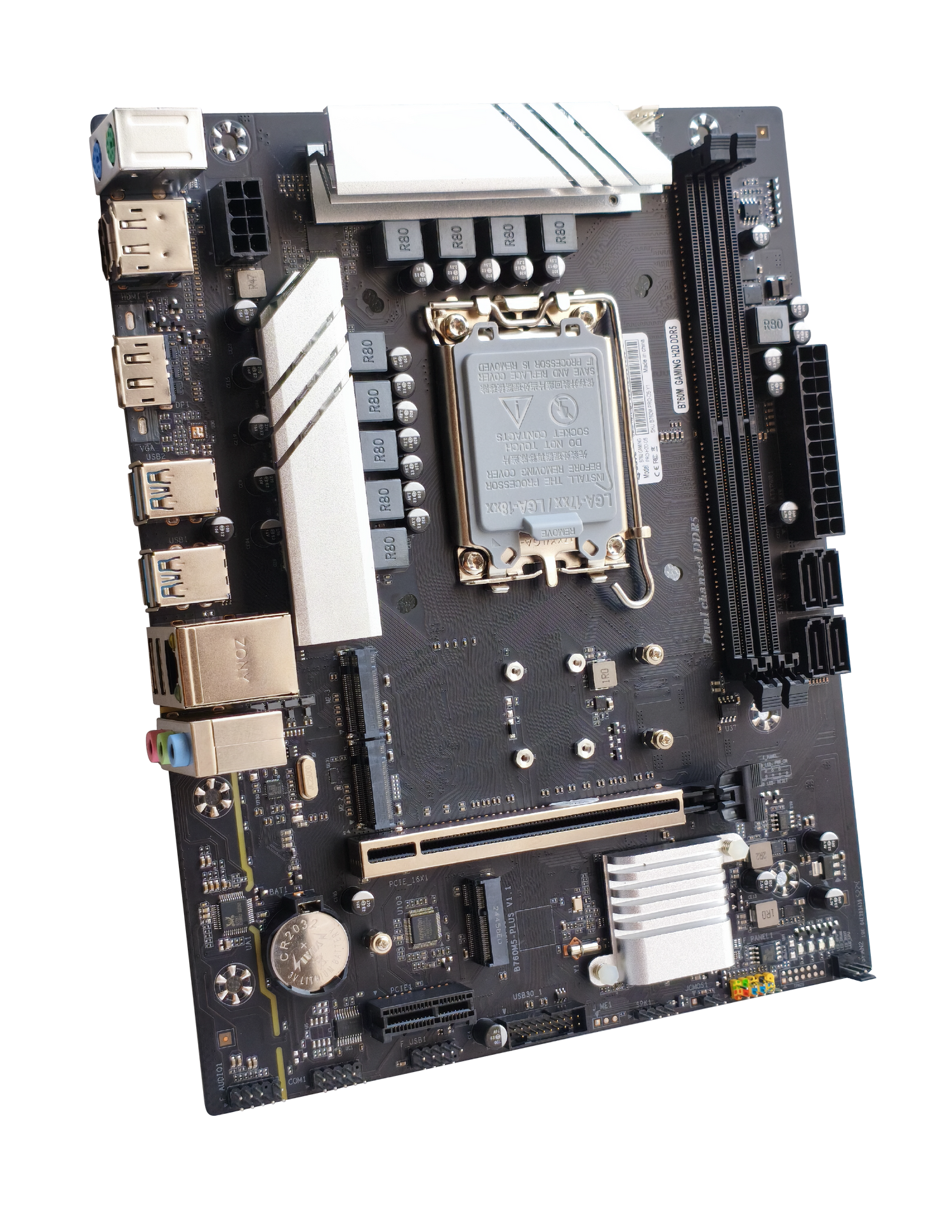

SSTC B760M GAMING H2D DDR5

GAMING WITH DDR5 RAM SUPPORT

Boost gaming experience with featuring 2 x DDR5 support, increasing accuracy and speed. Also supports up to 2 x M.2 NVMe PCIe 4.0 for super fast SSD and another M.2 slot for WIFI with optional WIFI 6 2400Mbs connection.

MODEL

  • B760M GAMING H2D DDR5

    CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen / LGA 1700
    MEMORY: 2x DDR5

    DISPLAY: 1x HDMI, 2x Display Port

    STORAGE: 2 x M.2 NVMe PCIe 4.0 (4x4), 4x SATA 6Gbs

    USB: 4x USB 3.2 (Rear), 2x USB 2.0 (Rear), 2x USB 3.2 (Front), 2x USB 2.0 (Front)
    LAN: 1x Realtek® Gigabit Ethernet port
    LED: 4x System debugging LEDs

    More details
1 1

Supports 14th, 13th and 12th Gen Intel Core processors

SSTC B760 motherboards give full support for 14th Gen, 13th Gen and 12th Gen Intel®Core™ Processors, with more higher clock speeds, more cores bring more performance.

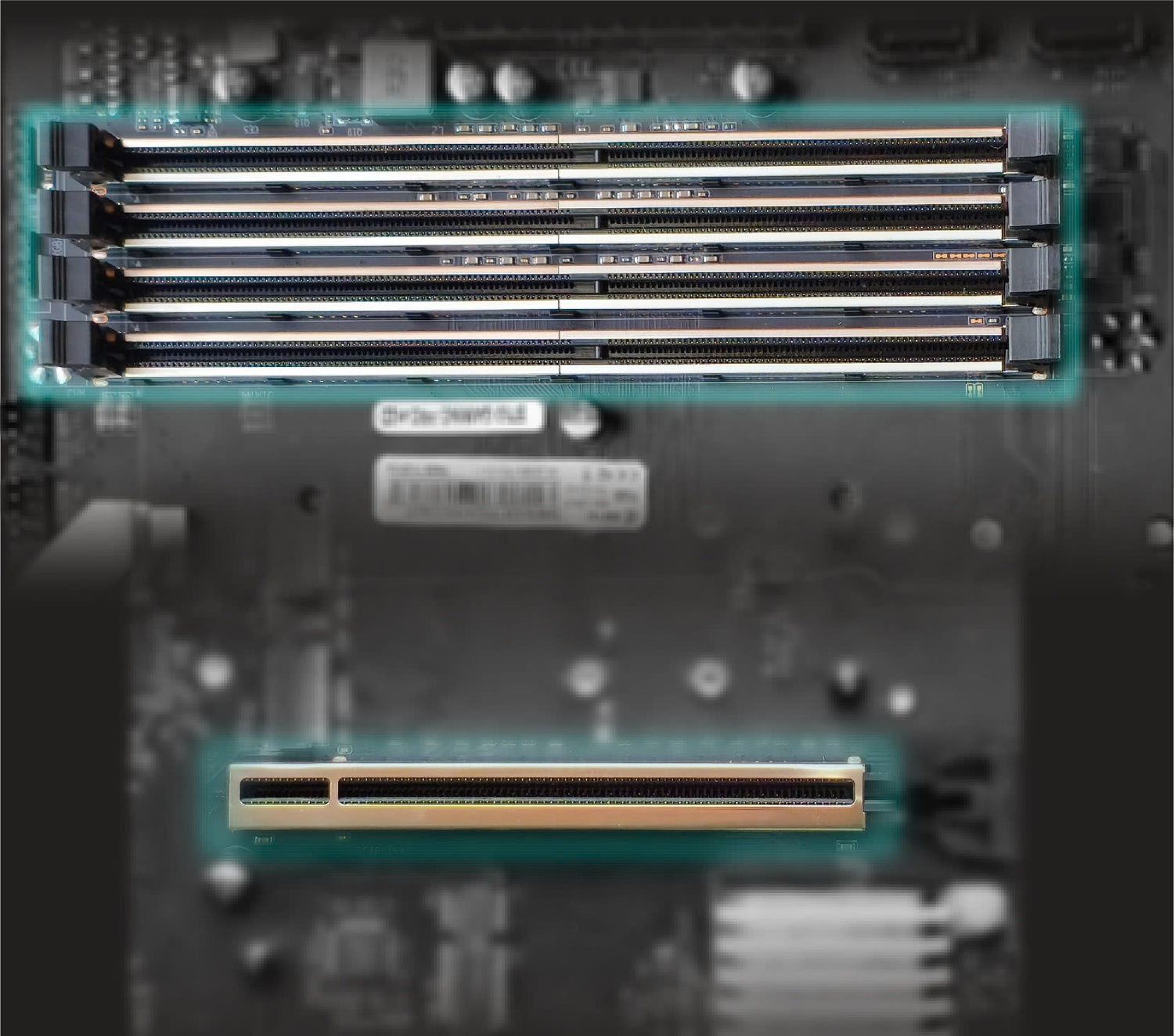

Steel Armoured PCI-E & DDIM Slot

The advanced PCI-E/DDIM Steel Slot packed with solid cover that prevent any signal interference with graphics cards, memory. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely and protect memory modules, empowering you to insert modules with speed, accuracy and confidence.

Both DDR5 and DDR4 Options Available

SSTC B760 motherboards will offer DDR4 as well as DDR5 variants. Not only does this assist gamers on a budget in minimizing costs when possible, though, it opens the gateway for tech wizards and gamers seeking a system that’s DDR5 ready.

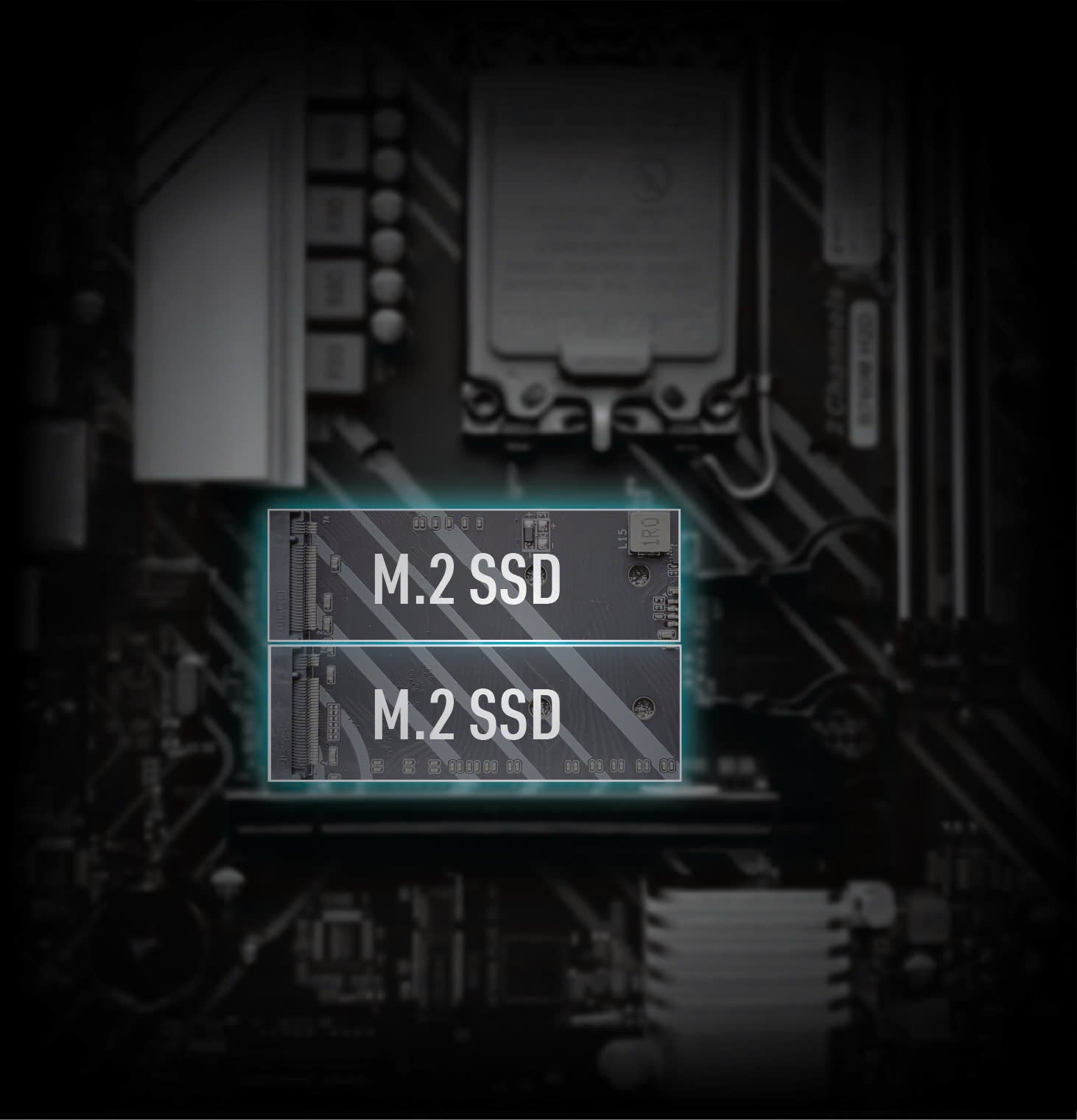

Dual High Speed M.2 Solution (PCIe Gen4 x4)

Supports up to 2x PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
